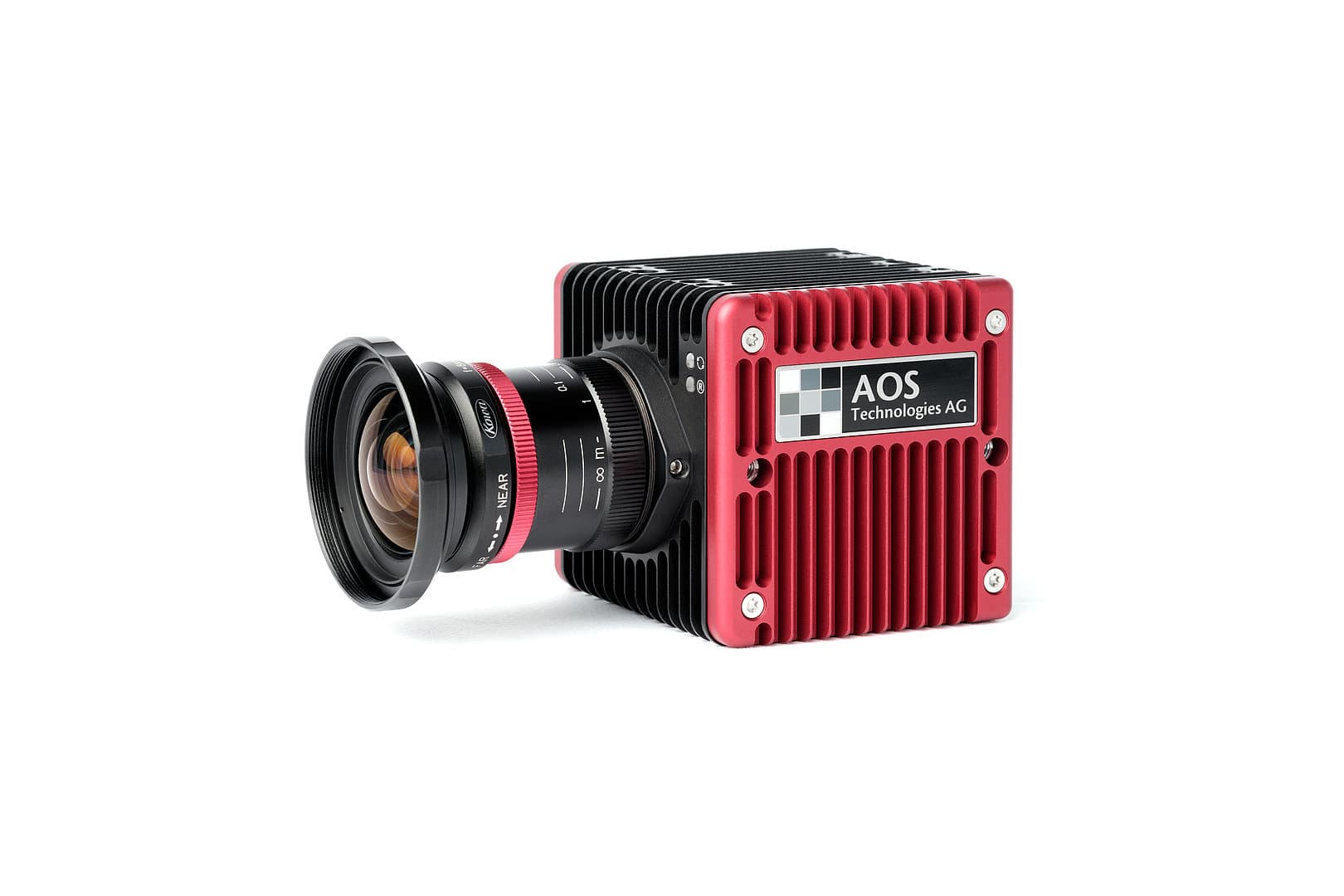

AOS L-VIT 2500

The L-VIT 2500 is a rugged, ultra-compact high-speed camera from AOS Technologies that records Full HD 1920 x 1080 at up to 2,500 fps, 10,100 fps at 1920 x 260 and up to 195,600 fps at reduced resolution. It is built for demanding research, development and test applications where a compact, portable and robust camera is essential.

Rated to 200 g / 11 ms on all axes (150 g with the CFast option), the L-VIT 2500 has a built-in g-sensor for in-camera triggering and non-volatile flash memory that automatically backs up every recording. Options include HDMI output, a CFast card interface and a ChillBox, and Imaging Studio V4 software is included. Contact HSI for pricing and availability in Canada.

Download Datasheet

Technical Specifications

Parameter	Typical Range
Sensor	CMOS, 4/3" (19.20 × 10.80 mm), 10 µm pixels
Frame Rate @ Full HD	2,500 fps @ 1920 × 1080
Reduced Resolution	3,360 fps @ 1920 × 800 / 5,000 fps @ 1920 × 536 / 10,100 fps @ 1920 × 260
Max Frame Rate	195,600 fps
Memory	4, 8 or 16 GB (8 s at 1920 × 1080 @ 1,000 fps with 16 GB)
Light Sensitivity	ISO 8,000 mono / ISO 6,000 colour
Bit Depth	Mono 10-bit / colour 30-bit
Shutter	Global, independent of frame rate
Shock Resistance	200 g / 11 ms all axes (150 g with CFast interface)
Storage	64 GB non-volatile flash backup, optional CFast
Video Out	Optional HDMI
Data Interface	Gigabit Ethernet
Synchronization	IRIG-B
Power	10–36 V, 30 W
Dimensions	75 × 75 × 75 mm, 910 g
Operating Temperature	-10 to +45 °C

Key Specifications

•4/3" CMOS sensor, 10 µm pixels
•1920 x 1080 at up to 2,500 fps, up to 195,600 fps at reduced resolution
•4, 8 or 16 GB memory
•200 g / 11 ms all axes (150 g with CFast)
•Built-in g-sensor and non-volatile flash backup
•75 x 75 x 75 mm, 910 g

Key Features

•Ultra-compact, portable and rugged design
•Built-in g-sensor for in-camera triggering, adjustable by software
•Non-volatile flash memory automatically backs up every recording
•Wide range of signals for external control and camera status feedback
•Optional HDMI output, CFast interface, battery and ChillBox
•Global shutter independent of frame rate

Lens Options

•C-mount
•EF-mount (optional adapter)
•F-mount (optional adapter)

Software & Integration

•Imaging Studio V4

Applications

•Automotive crash testing
•Military and defence testing
•Research and development
•Portable field testing

Related Products

All AOS Technologies AG products →

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

J-PRI

With its 2560x1920 pixels and up to 2000 frames per second this high resolution high speed camera captures the smallest details The J-PRI is a unique platform of cameras with a stunning 5Mpixel sensor and up to 2000 fps recording speed. The camera is available in different speed and resolution grades. The solid built high speed camera comes with all accessories, a powerful software all packed in a solid case. The camera is ideally suited for use in many demanding scientific and industrial applications as well as offboard automotive crash tests.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

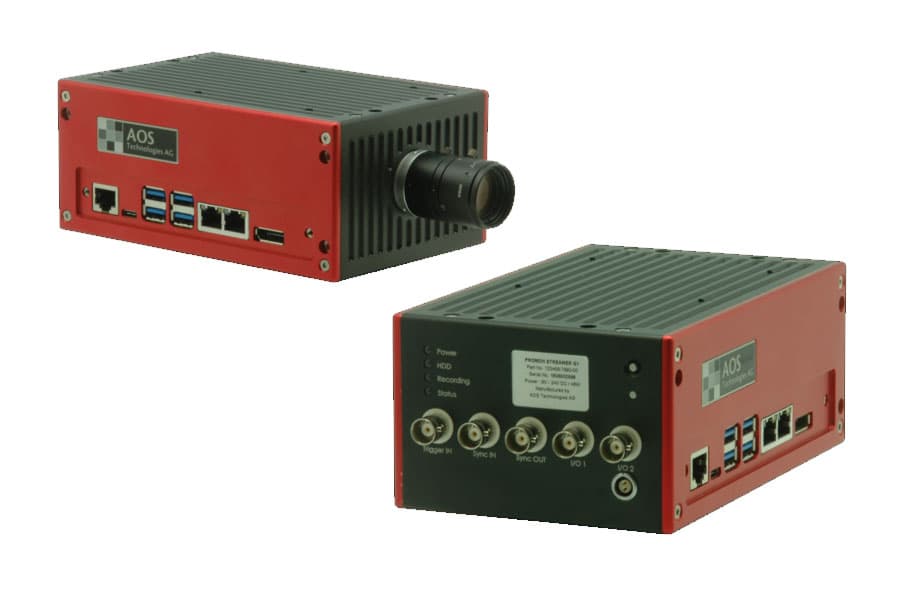

Promon Streamer
