AOS Technologies AG

AOS Technologies AG is a global leader in high-speed cameras and streaming systems, offering turnkey installations to a diverse clientele. Their products serve top companies in industrial applications, leading automotive manufacturers, and prestigious universities. Furthermore, AOS technologies are critical in defense applications, including airborne store separation tests.

14 products

Products

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

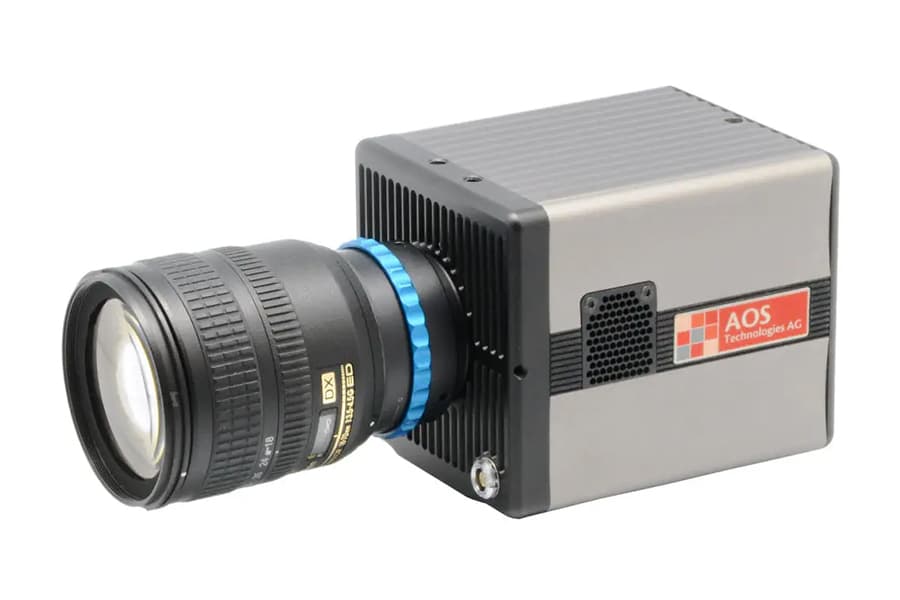

J-PRI

With its 2560x1920 pixels and up to 2000 frames per second this high resolution high speed camera captures the smallest details The J-PRI is a unique platform of cameras with a stunning 5Mpixel sensor and up to 2000 fps recording speed. The camera is available in different speed and resolution grades. The solid built high speed camera comes with all accessories, a powerful software all packed in a solid case. The camera is ideally suited for use in many demanding scientific and industrial applications as well as offboard automotive crash tests.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

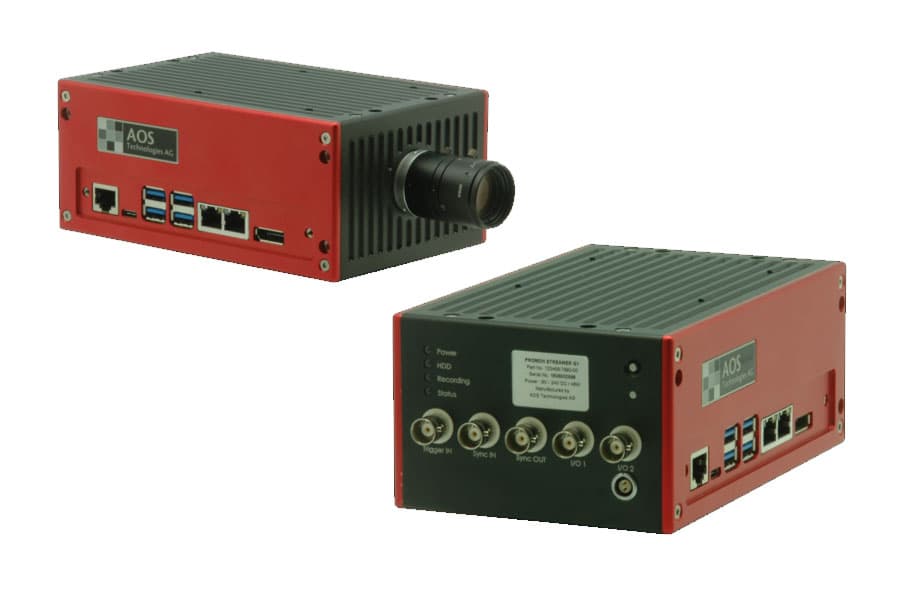

Promon Streamer

The compact footprint makes the Streamer a perfect system for permanent installation on a production line. Beside the high speed recording feature and the long time recording capabilities, the built-in I/Os allow control from PLC – so it’s ready when you need it. The versatile system is available in different variations such as built-in camera, with an additional external camera, or two external cameras. The control software is based on Imaging Studio v4, all features are easy configurable by the software.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

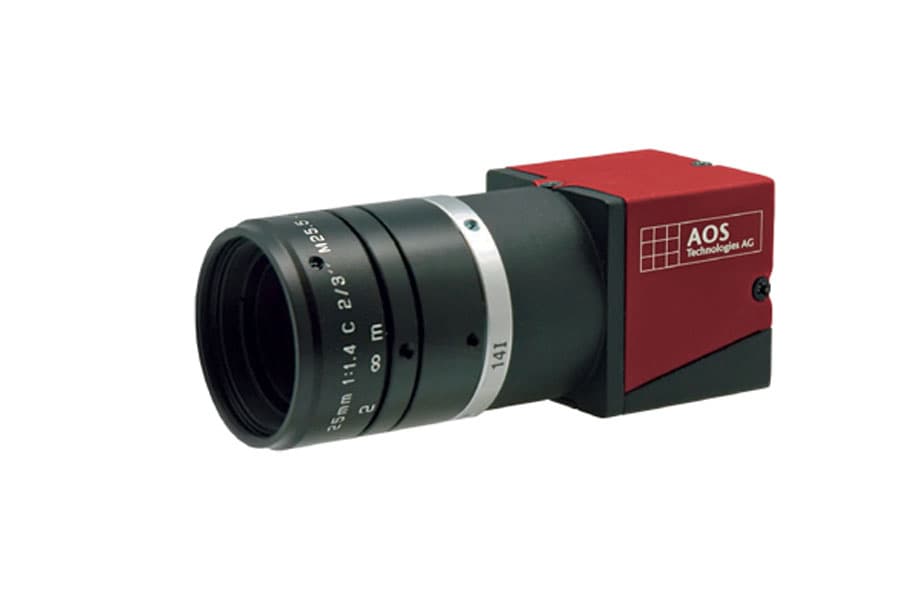

Promon U series

The PROMON U Series are compact, economical high-speed cameras that connect to a PC with a single USB3 cable. Three models cover different resolution and speed needs: • PROMON U750: 1280 x 1024 pixels at up to 203 fps, 1/2" sensor • PROMON U800: 1280 x 1024 pixels at up to 210 fps, and up to 804 fps at 640 x 480, 1/2" sensor • PROMON U1000: 1984 x 1264 pixels at up to 139 fps, and 167 fps at 1920 x 1080, 2/3" sensor All three use a global-shutter CMOS sensor with 4.8 µm pixels and come with Imaging Studio V4 software. Record into PC memory for seconds, or stream straight to SSD for minutes or hours, with circular-buffer recording, external and image-based triggering, multi-camera sync and 24/7 recording. They suit industrial troubleshooting, production monitoring, education and mobile use. For full specifications of each model, download the individual datasheets below.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

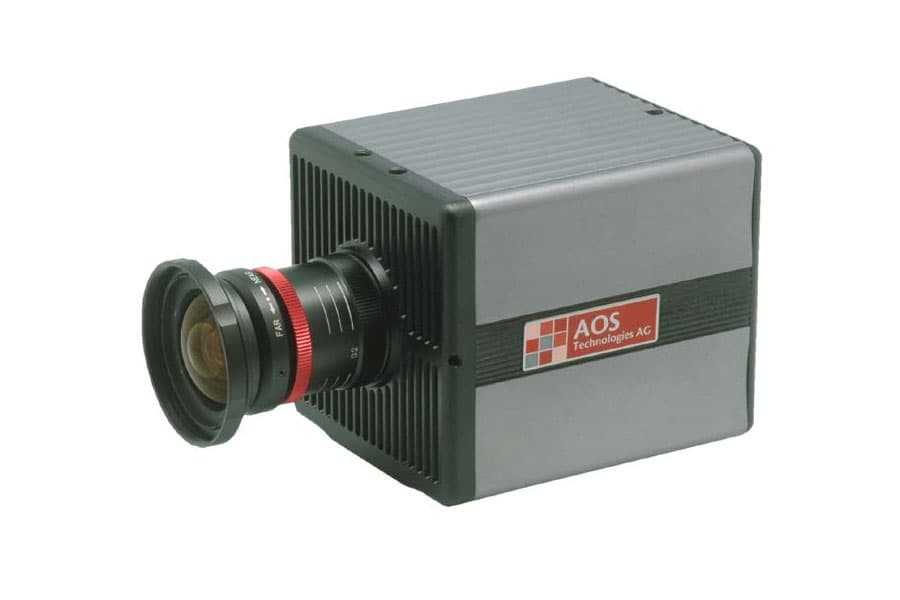

L-PRI

With its 1920 x 1080 pixels and up to 2800 frames per second this high speed camera leaves no wish open in regards of resolution and framing speed. The different camera models are available with basic memory of 4GB and can expand up to 128GB. The L-PRI is a solid build high speed camera with a high light sensitive state of the art sensor.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

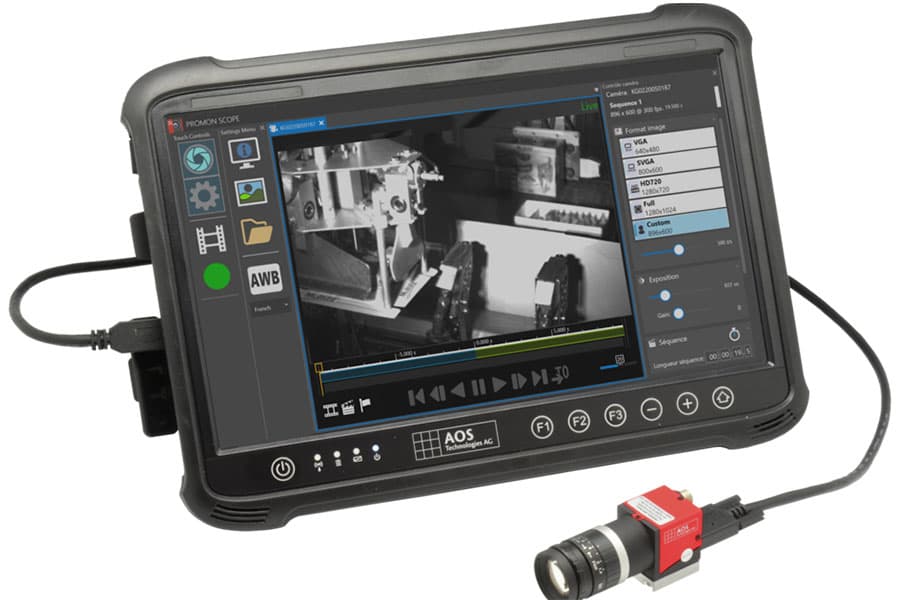

Promonscope

A frame rate of up to 3500 frames per second is more than 100 times faster than standard video and allows you to monitor any process in detail. PROMON SCOPE G4 is the tool for detecting trends and catching those sporadic and intermittently occurring incidents in high-speed recording and play it back in slow motion. See your events too fast for the human eye in detail and take corrective actions. Reduce your downtime and waste of material.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

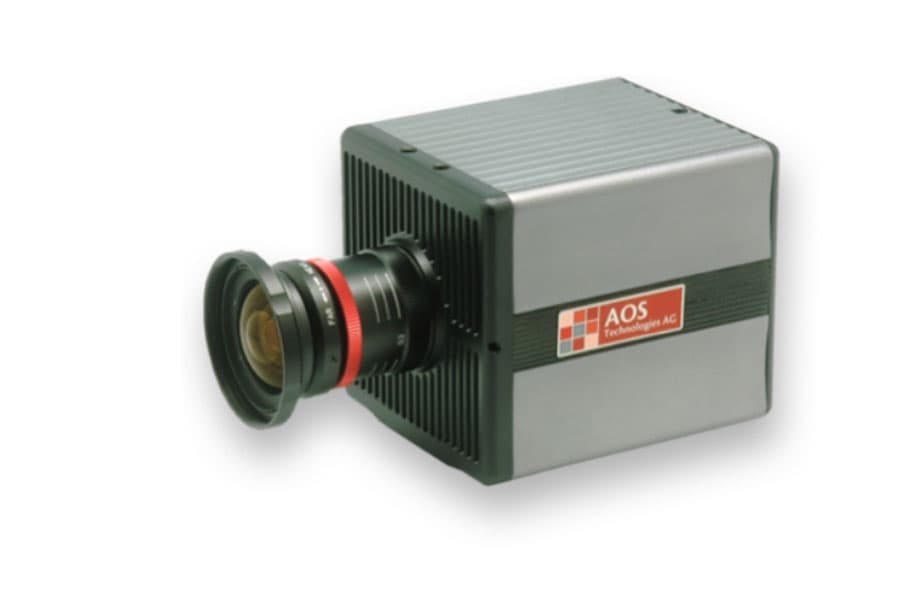

M-PRI

A modular high speed camera for budget critical applications. The M-PRI series starts from 1000 fps up to 4000 fps at full resolution. Different memory options for an exactly shaped high speed recording system to meet technical demands and budget.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

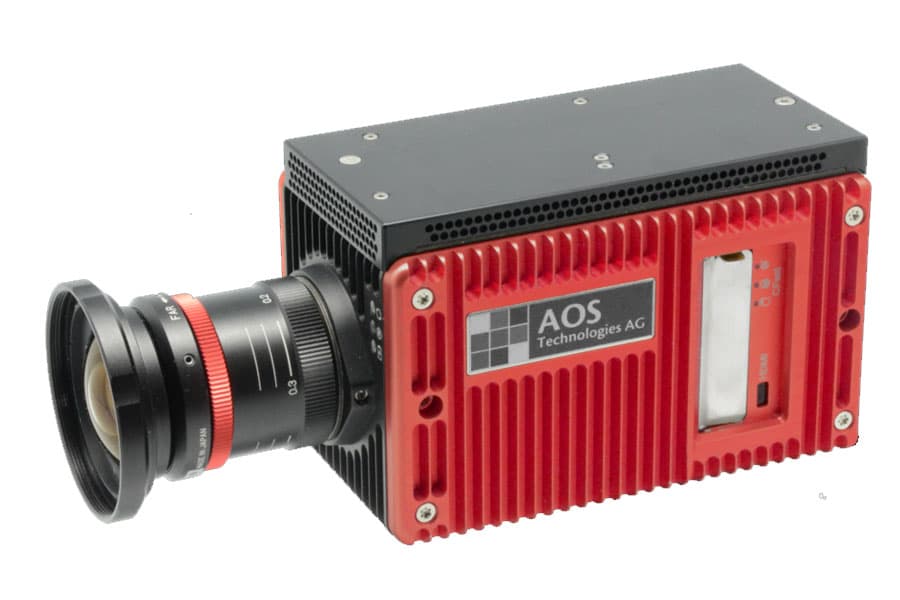

L-VIT Platinum

L-VIT Platinum – A camera with all features! A compact high resolution high speed camera with 1920 x 1080 pixels at up to 2500 fps. For demanding applications in research labs, test ranges and crash sites. L-VIT Platinum is particularly suited for all applications where a compact, portable, high resolution yet robust camera is essential. The highly light-sensitive sensor covers the most ambitious application. Packed with lots of features the L-VIT Platinum leaves no whish open in regards of versatility and use.

View Details

AOS Technologies AG

Long Recording Cameras

PROMON 2000

Unlike traditional high-speed cameras limited by internal memory size, the PROMON 2000 transcends these limitations. Over a high-speed 10 Gigabit Ethernet connection, this camera can stream at 1000fps in 8-bit mode with a resolution of 1920 x 1080 pixels. When a high dynamic range is required, the 12-bit sensor captures recordings at speeds of up to 300fps. All of these remarkable features seamlessly integrate into a comprehensive software package, ensuring that both recording and post-processing are straightforward and user-friendly.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

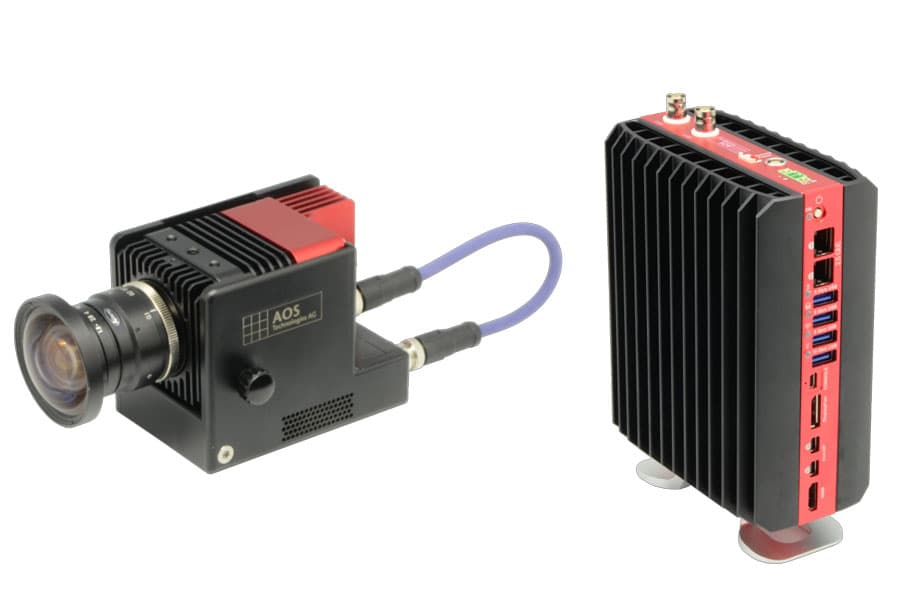

PROMON 2000 HSR

PROMON 2000 HSR | High-Speed Recorder with 1920x1080 @ 1000 fps & Up to 8TB Storage Full HD at 1000 fps: Capture every detail with precision. Direct-to-Non-Volatile Memory: No need for downloads - start your next recording instantly. Maximize Efficiency: Eliminate downtime and keep your workflow smooth. PROMON 2000 HSR High Speed Camera System

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

M-VIT 4000

The M-VIT 4000 is a compact, High-G rated high-speed camera from AOS Technologies, built for space-limited locations such as onboard automotive crash tests and military and defence testing. Its highly light-sensitive 1280 x 864 pixel CMOS sensor records 3,716 fps at full resolution and 4,451 fps at 1280 x 720. The camera is tested to 150 g / 11 ms on all axes and offers up to 16 GB of memory, a G-shock trigger, auto exposure and motion detection, IRIG-B synchronization and Gigabit Ethernet control. Contact HSI for pricing and availability in Canada.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

M-VIT Platinum

The M-VIT Platinum is a fully featured, High-G rated high-speed camera from AOS Technologies for the most severe environments. Its light-sensitive CMOS sensor records 3,716 fps at 1280 x 864 and 4,010 fps at 1280 x 800, with a global shutter and up to 220,000 fps at reduced resolution. Rated to 150 g / 11 ms on all axes with spikes up to 200 g, it has a built-in g-sensor for in-camera triggering, non-volatile flash memory that backs up every recording, HDMI or HD-SDI output, a CFast card interface, IRIG-B synchronization and IEEE 1588 PTP. Imaging Studio V4 software is included. Contact HSI for pricing and availability in Canada.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

N-VIT

The N-VIT is a rugged, ultra-compact onboard high-speed camera from AOS Technologies, engineered for rigorous environments such as car crash tests. Its light-sensitive 1" CMOS sensor records Full HD 1920 x 1080 at up to 1,096 fps, 5,000 fps at 1920 x 230 and up to 130,000 fps at reduced resolution. The sensor is fully covered by compact 1" lenses, cutting the size and weight of the optics. Certified for 150 g / 11 ms on all axes with spikes up to 200 g, the N-VIT has a built-in G-sensor for primary or backup triggering and a rescue flash that saves each recording to non-volatile memory if power fails. Imaging Studio V4 software is included. Contact HSI for pricing and availability in Canada.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

L-VIT 2500

The L-VIT 2500 is a rugged, ultra-compact high-speed camera from AOS Technologies that records Full HD 1920 x 1080 at up to 2,500 fps, 10,100 fps at 1920 x 260 and up to 195,600 fps at reduced resolution. It is built for demanding research, development and test applications where a compact, portable and robust camera is essential. Rated to 200 g / 11 ms on all axes (150 g with the CFast option), the L-VIT 2500 has a built-in g-sensor for in-camera triggering and non-volatile flash memory that automatically backs up every recording. Options include HDMI output, a CFast card interface and a ChillBox, and Imaging Studio V4 software is included. Contact HSI for pricing and availability in Canada.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

L-VIT 1000

The L-VIT 1000 is a rugged, ultra-compact onboard high-speed camera from AOS Technologies, engineered for rigorous environments such as car crash tests. It records Full HD 1920 x 1080 at up to 1,000 fps, 4,206 fps at 1920 x 256 and up to 100,000 fps at reduced resolution. Certified for 150 g / 10 ms on all axes with spikes up to 200 g, the L-VIT 1000 has a built-in G-sensor for primary or backup triggering and non-volatile flash memory that backs up every recording. Options include HDMI or HD-SDI output and a CFast card interface, and Imaging Studio V4 software is included. Contact HSI for pricing and availability in Canada.

View Details
