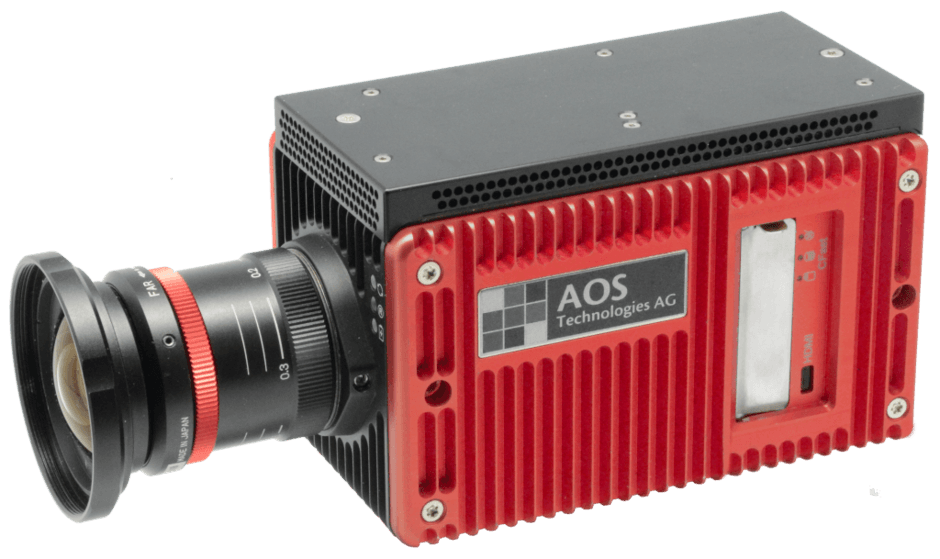

AOS M-VIT Platinum

The M-VIT Platinum is a fully featured, High-G rated high-speed camera from AOS Technologies for the most severe environments. Its light-sensitive CMOS sensor records 3,716 fps at 1280 x 864 and 4,010 fps at 1280 x 800, with a global shutter and up to 220,000 fps at reduced resolution.

Rated to 150 g / 11 ms on all axes with spikes up to 200 g, it has a built-in g-sensor for in-camera triggering, non-volatile flash memory that backs up every recording, HDMI or HD-SDI output, a CFast card interface, IRIG-B synchronization and IEEE 1588 PTP. Imaging Studio V4 software is included. Contact HSI for pricing and availability in Canada.

Download Datasheet

Technical Specifications

Parameter	Typical Range
Sensor	CMOS, 4/3" (17.92 × 12.09 mm), 14 µm pixels
Frame Rate	3,716 fps @ 1280 × 864 / 4,010 fps @ 1280 × 800
Reduced Resolution	4,451 fps @ 1280 × 720 / 6,222 fps @ 1280 × 512 / 12,207 fps @ 1280 × 256
Max Frame Rate	220,000 fps
Memory	8 GB or 16 GB (12 s at 1280 × 800 @ 1,000 fps with 16 GB)
Light Sensitivity	ISO 10,000 mono / ISO 6,000 colour
Bit Depth	Mono 10-bit / colour 30-bit
Shutter	Global, independent of frame rate
Shock Resistance	150 g / 11 ms all axes, spikes up to 200 g
Storage	Non-volatile flash backup, CFast card interface
Video Out	HDMI or HD-SDI
Data Interface	Gigabit Ethernet
Synchronization	IRIG-B, IEEE 1588 PTP
Power	10–36 V, 40 W
Dimensions	75 × 75 × 130 mm
Operating Temperature	-10 to +45 °C

Key Specifications

•CMOS sensor, 14 µm pixels, 4/3" format
•4,010 fps at 1280 x 800, up to 220,000 fps at reduced resolution
•8 GB or 16 GB memory
•150 g / 11 ms all axes, spikes up to 200 g
•HDMI or HD-SDI output, CFast card interface
•IRIG-B and IEEE 1588 PTP synchronization

Key Features

•Built-in g-sensor for in-camera triggering, adjustable by software
•Non-volatile flash memory automatically backs up every recording
•HDMI or HD-SDI live video output on camera
•CFast card interface for memory extension
•Optional battery to save data when power is lost
•Global shutter independent of frame rate

Lens Options

•C-mount
•EF-mount (optional adapter)
•F-mount (optional adapter)

Software & Integration

•Imaging Studio V4

Applications

•Automotive crash testing
•Military and defence testing
•Research and development in severe environments
