Photron FASTCAM Mini W Series

The Photron FASTCAM Mini W Series delivers 2.4-megapixel resolution, global electronic shutter performance, and exceptional low-light sensitivity in a compact, rugged camera body designed for demanding scientific and industrial environments.

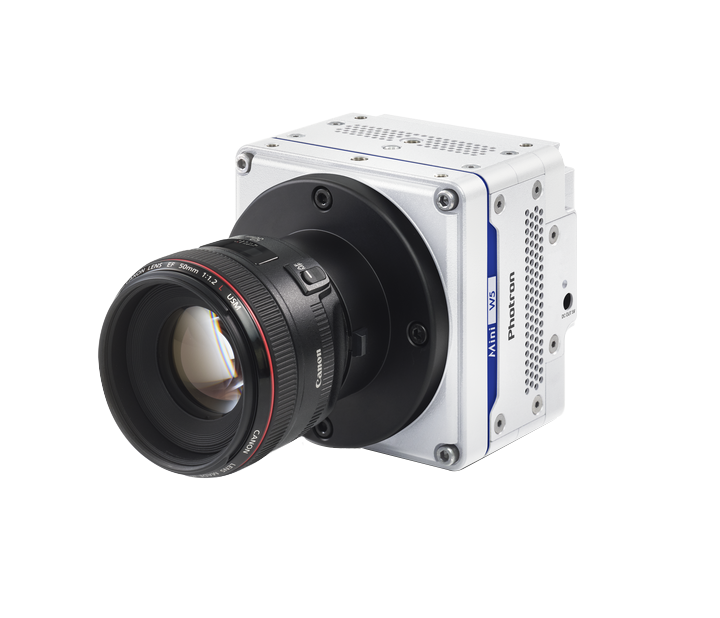

FASTCAM Mini W5 – Ultra-High-Speed, High-Sensitivity Imaging

2.4 MP | Up to 5,000 fps (full resolution) | Up to 200,000 fps (reduced resolution)

The FASTCAM Mini W5 captures 5,000 fps at full 2048 × 1152 resolution and up to 200,000 fps at reduced resolution. Its large 13-micron pixels provide class-leading light sensitivity for low-light experiments.

FASTCAM Mini W2 – High-Sensitivity High-Speed Imaging

2.4 MP | Up to 2,000 fps (full resolution) | Up to 150,000 fps (reduced resolution)

The FASTCAM Mini W2 offers the same sensor and image quality as the Mini W5, optimized for applications requiring lower maximum frame rates at excellent sensitivity.

Download Datasheet

Technical Specifications

Parameter	Typical Range
Sensor	2.4-Megapixel CMOS, 2048 × 1152px
Sensor Size	26.62 × 14.98mm (diagonal 30.55mm)
Pixel Size	13µm
Full Frame Rate (W5)	5,000fps at 2048 × 1152
Full Frame Rate (W2)	2,000fps at 2048 × 1152
FHD Rate (W5)	5,280fps at 1920 × 1080
FHD Rate (W2)	2,750fps at 1920 × 1080
Maximum Frame Rate (W5)	200,000fps
Maximum Frame Rate (W2)	150,000fps
Light Sensitivity	ISO 10,000 mono / ISO 2,000 color
Shutter	Global electronic, 2µs
Dynamic Range	12-bit mono / 36-bit color
Memory	16GB, 32GB, 64GB
Interface	1/10-Gigabit Ethernet
Dimensions	120 × 120 × 93mm
Weight	2.1kg
Operational Shock	100G, 11ms, 6-axes
Operating Temperature	-10 to 40°C

Key Specifications

•2048 × 1152 resolution (2.4 MP)
•5,000 fps full frame — Mini W5
•2,000 fps full frame — Mini W2
•5,280 fps at Full HD — Mini W5
•2,750 fps at Full HD — Mini W2
•ISO 10,000 mono / ISO 2,000 color
•Global electronic shutter (2 µs)
•16 GB / 32 GB / 64 GB internal memory
•1/10 Gigabit Ethernet, high-G rated (100G)
•Up to 150,000 fps reduced resolution

Key Features

•Exceptional low-light performance
•Sealed body for dust and particle protection
•Mechanical calibration shutter
•Partition recording
•Fan-off mode for vibration-free imaging
•Precise synchronization and triggering

Lens Options

•Nikon F-mount (standard)
•Optional C-mount, Canon EF, Canon RF

Software & Integration

•Photron FASTCAM Viewer (PFV)
•SDK support for MATLAB and LabVIEW
•Optional FASTCAM Analysis 2 (PFA2)

Applications

•Scientific research
•Automotive safety
•Aerospace & defense
•Materials testing
•Fluid dynamics
•Biomechanics & sports science
