High-Speed Cameras

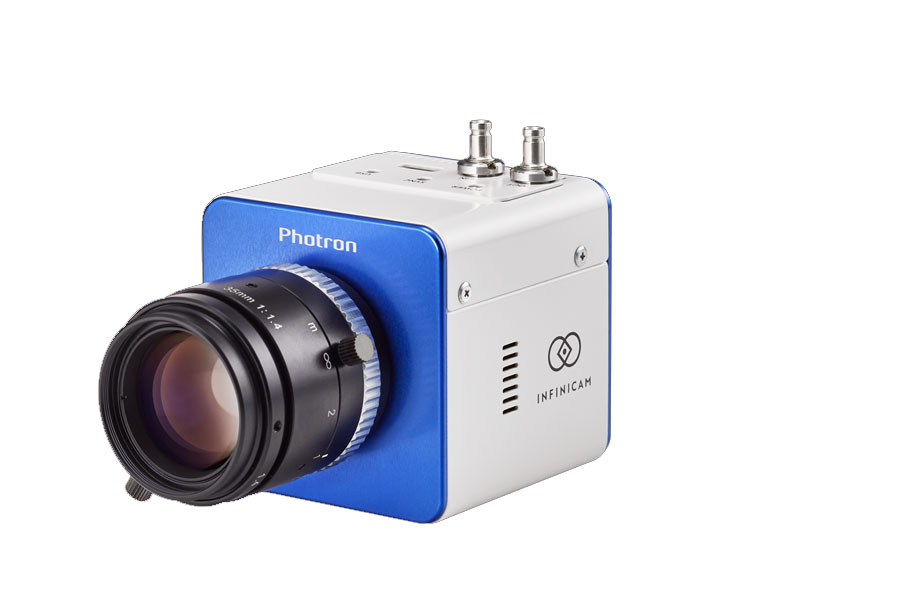

Photron Infinicam

INFINICAM is a high-speed streaming camera capable of capturing and transferring 1.2-megapixel of image data to PC memory at 1,000fps via USB 3.1. The latest version of the SDK supports Python, a common language in the computer vision/machine vision field, in addition to C++. This makes real-time image processing with INFINICAM possible with easy intuitive programming. INIFINICAM is also compatible with StreamPix and TroublePix Software from Norpix to provide a comprehensive off-the-shelf high-speed camera solution.

Download Datasheet

Technical Specifications

Parameter	Typical Range
Model	INFINICAM UC-1
Sensor	CMOS, 12.8 × 10.24mm
Pixel Size	10µm
Max Resolution	1246 × 1024
Max Frame Rate (full)	988fps
Max Frame Rate (split)	31,157fps (1246 × 16)
Min Exposure	6.5µs
Shutter	Global
Dynamic Range	8-bit monochrome
Interface	USB 3.1 Gen 1 Type-C
Lens Mount	C-mount
Dimensions	55 × 55 × 55mm
Weight	280g
Power	5V USB Vbus
Operating Temperature	0 to 45°C

Key Specifications

•1246 × 1024 CMOS sensor
•Full frame rate: 988fps at 1246 × 1024
•Split frame mode: up to 31,157fps at 1246 × 16
•Global shutter, 8-bit monochrome
•Minimum exposure: 6.5µs
•USB 3.1 Gen 1 Type-C interface — no dedicated board required
•Dimensions: 55 × 55 × 55mm, 280g

Key Features

•High-speed streaming directly to PC memory via USB 3.1
•Real-time image compression to less than 1/4 original data volume
•Python and C++ SDK support for real-time processing
•Open development environment with samples on GitHub
•Compatible with Norpix StreamPix and TroublePix software
•Air-cooled compact C-mount housing

Lens Options

•C-mount — standard

Software & Integration

•Photron INFINICAM SDK (C++ and Python)
•Norpix StreamPix (optional)
•Norpix TroublePix (optional)
•Compatible with Microsoft Windows 10/11 (64-bit)

Applications

•Real-time image processing and machine vision
•Industrial troubleshooting and inspection
•Robot control and automatic tracking
•Motion analysis and object detection
•Bioimaging and altitude control
•Digital holography and optical flow
