Lighting & Laser Illumination

REL WS1K

by REL

REL
REL WS1K

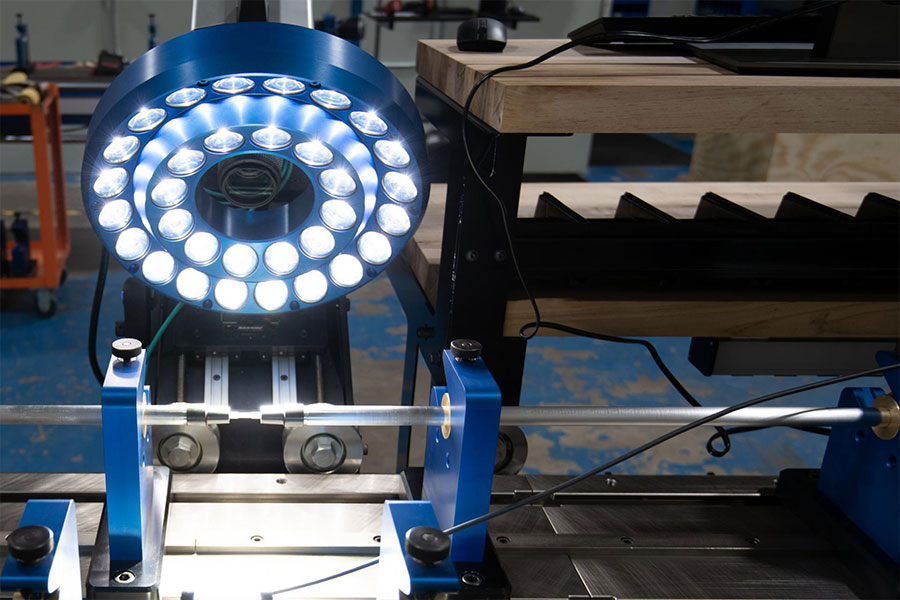

Improve both your image quality and your data by focusing a precise, constant power, LED light beam directly at your subject. The WS1-K encircles the camera lens to eliminate shadowing and uses a simple handheld controller that allows the head to be turned on easily while guaranteeing consistent exposure levels during the event.

Download Datasheet

Technical Specifications

ParameterTypical Range
Form Factor16" LED Ring
Peak Intensity10 Mlux
Max Frame Rate IlluminationUp to 5,000,000 fps
Duty Cycle100% at maximum output
Spot @ 300mm25 mm
Weight15 lbs
Outer Diameter16"
Inner Diameter6"
Thickness2"
Voltage36V, 600W

Key Specifications

  • •16" LED Ring form factor
  • •10 Mlux peak intensity
  • •Capable of illuminating cameras at up to 5,000,000 fps
  • •100% duty cycle at maximum output
  • •Low infrared emission
  • •Weight: 15 lbs
  • •Dimensions: 16" OD x 6" ID x 2" thick
  • •36V, 600W power supply
  • •25 mm spot diameter at 300 mm distance
  • •Handheld remote dimming control

Key Features

  • •Ring-light design providing even, coaxial illumination
  • •10 Megapixel-lux peak intensity for ultra-high-speed imaging
  • •Supports illumination up to 5 million fps
  • •100% continuous duty cycle at full output
  • •Low IR output to reduce heat on specimen
  • •Handheld remote dimming for easy intensity adjustment
  • •Compact ring design for direct lens mounting

Lens Options

  • •Ring-light optic with 6" inner diameter for lens clearance

Applications

  • •Ultra-high-speed camera illumination up to 5 Mfps
  • •Macro and close-up high-speed imaging
  • •Materials testing and impact analysis
  • •Particle and droplet imaging
