Clara Vision TroublePad

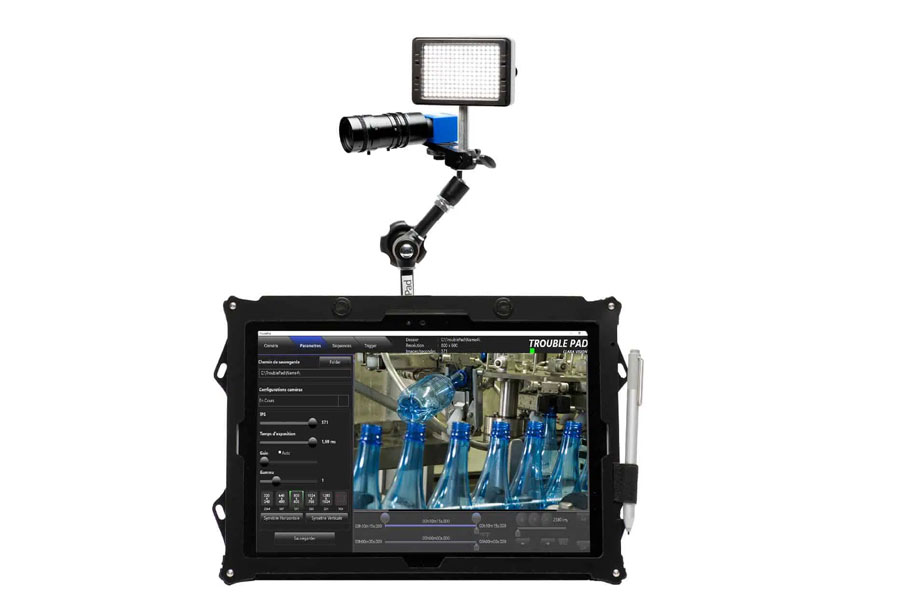

TroublePad is a high speed camera solution that enables the identification of production line improvement points. It can be used alongside your existing industrial monitoring system. Easy to use and intuitive, our ultra-portable high speed camera system was created with industrial maintenance in mind. It will enable you to diagnose and understand the anomalies and defects in your production line and high speed machinery.

The TroublePad is aimed at industries that run production lines, such as the food industry, cosmetics, packaging or pharmaceuticals, etc.

Download Datasheet

Technical Specifications

ParameterTypical Range
Recommended Frame Rate570 fps @ 800x600
Maximum Frame Rate2,500 fps @ 320x240
Built-in Lighting204 LED array, 1,400 lux @ 1m
LensC-mount 8–48mm macro zoom
Display12" tactile tablet
ProcessorIntel Core CPU
RAM8 GB
StorageSSD
Recording ModeLoop recording with pre/post trigger
Case Weight9 kg
Case Dimensions575 x 470 x 205 mm

Key Specifications

  • •Recommended 570 fps at 800x600 resolution
  • •Maximum 2,500 fps at 320x240 resolution
  • •204-LED integrated lighting providing 1,400 lux at 1 meter
  • •C-mount 8–48mm macro zoom lens
  • •12" tactile tablet display
  • •Intel Core processor with 8 GB RAM and SSD storage
  • •Loop recording with pre- and post-trigger capture
  • •Complete system in a 9 kg case (575x470x205 mm)

Key Features

  • •All-in-one portable high-speed camera system in a carry case
  • •Integrated 204 LED illumination array
  • •12" touchscreen tablet for on-site operation
  • •Loop recording with adjustable pre/post-event trigger
  • •Macro zoom lens for close-up and variable focal length imaging
  • •SSD storage for rugged, reliable data capture
  • •Compact and self-contained for field deployment

Lens Options

  • •C-mount 8–48mm macro zoom lens (included)
  • •C-mount compatible for third-party lens options

Software & Integration

  • •Integrated recording and playback software on Windows tablet

Applications

  • •Industrial troubleshooting and process analysis
  • •Field-deployable high-speed event capture
  • •Quality control inspection
  • •Research and development testing
