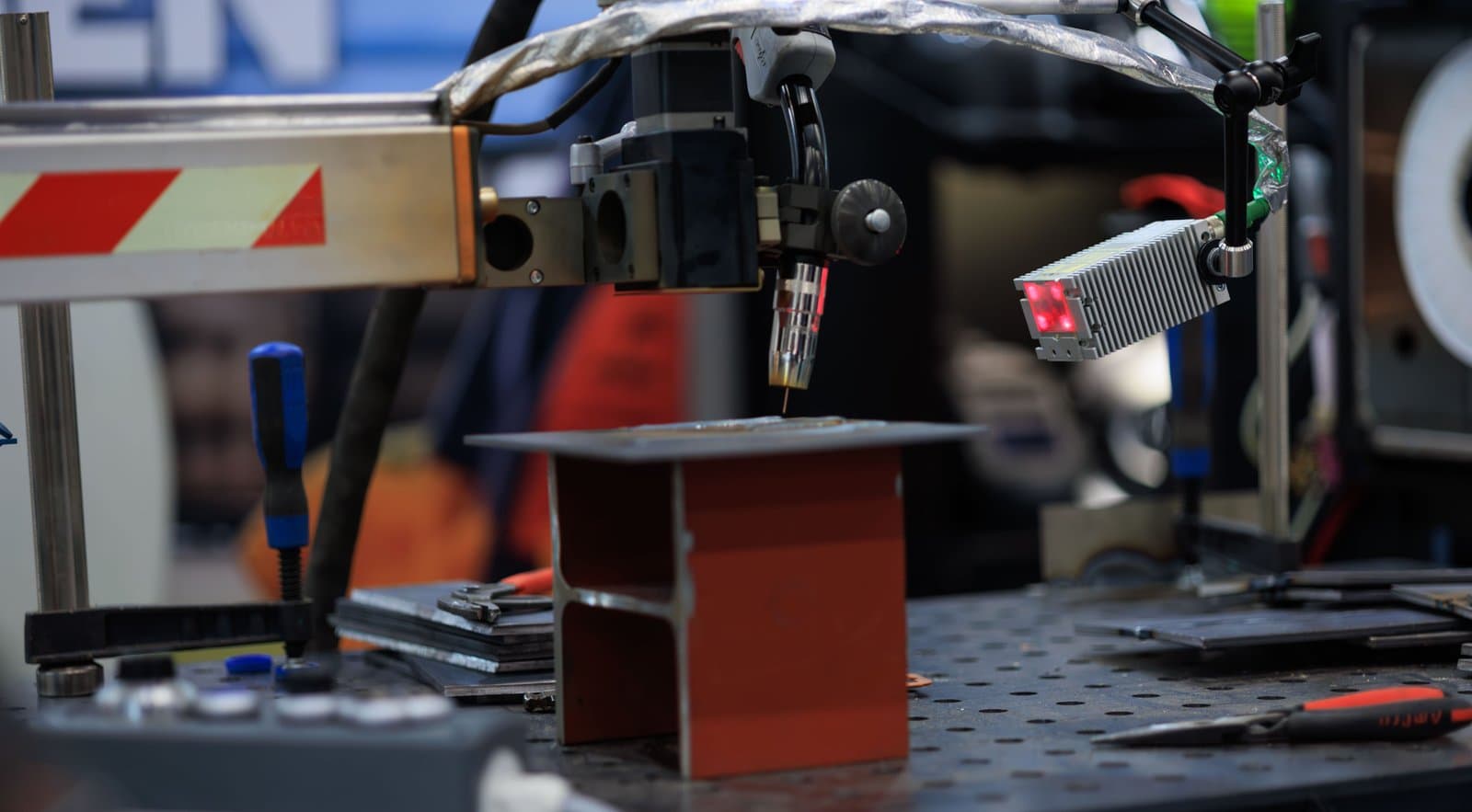

Cavitar C400 Series Welding Camera (IP64)

The C400 Series Welding Camera (IP64) is Cavitar's compact and robust welding camera, with an IP64-rated anodized aluminum body (38 × 48 × 99 mm) and both passive and active water/air cooling for continuous production use. Active laser illumination and ArcLessVision imaging see through the welding arc for a clear real-time view of the melt pool, filler material and torch alignment.

Two models: C400 (GigE, 1.5 MP at 70 fps, IP64) and C430 (GigE, 0.4 MP at 300 fps, up to 430 fps with 2×2 binning, IP64).

Download Datasheet

Technical Specifications

Parameter	Typical Range
Models	C400 (compact & robust) · C430 (fast GigE)
Protection Rating	IP64
Electronics & SDK	Baumer
Camera Interface	GigE
Connectors	M12 GigE, M12 power
Sensor Resolution	C400: 1440 × 1080 · C430: 720 × 540
Max Frame Rate (full resolution)	C400: 70fps · C430: 300fps
Max Frame Rate (2×2 binning)	C400: 100fps · C430: 430fps
Working Distance	150–300mm (adjustable)
Field of View	28 × 21mm @ 150mm · 40 × 30mm @ 200mm · 62 × 47mm @ 300mm
Illumination	650nm laser, Class 3R
Size (W × H × L)	38 × 48 × 99mm (excluding connectors)
Weight	350g
Operating Ambient Temperature	10–300°C (with cooling and insulation, non-condensing)
Cooling	Passive or active (air/liquid circulation)

Key Specifications

•C400: GigE, 1.5 MP (1440 × 1080) at 70fps, IP64
•C430: GigE, 0.4 MP (720 × 540) at 300fps, up to 430fps with 2×2 binning, IP64
•Adjustable working distance: 150–300mm
•650nm Class 3R laser illumination
•38 × 48 × 99mm, 350g

Key Features

•ArcLessVision: clear real-time view through the welding arc (melt pool, keyhole, filler material)
•IP64-rated, compact and robust housing
•Active laser illumination
•Adjustable optics
•Replaceable protective window
•Passive cooling plus active water/air cooling
•Anodized aluminum body
•Designed, engineered and manufactured in Finland
•Optional accessories: Sync Unit, robotic cables, Temperature Warning Unit (TWU), heatsink plates for passive cooling, 90° view camera adapter, robust protective window holders

Lens Options

•Adjustable optics, 150–300mm working distance

Software & Integration

•Baumer electronics & SDK
•Automation, AI and cloud integration

Applications

•TIG, MIG/MAG, TIP TIG and stick welding visualization
•Robotic and automated welding monitoring, robust for 24/7 use
•Early defect detection and weld quality documentation
•Welding set-up and torch-to-gap alignment
•Remote operation of welding processes
•Shipbuilding, aerospace, automotive, defence, nuclear & energy, rail and heavy industry

Related Products

All Cavitar products →

Cavitar

Lighting & Laser Illumination

Cavilux HF

We at Cavitar are here to bring you Value in Sight with our diode-laser based illumination systems and welding cameras that reveal your application and processes with the level of clarity and detail you have never seen before. We offer versatile products, systems and solutions for industrial visual process monitoring and R&D, as well as for scientific research, for integrators, OEM manufacturers, and end-users alike. In addition to our high-performance CAVILUX systems and Cavitar Welding Cameras, we also offer customized solutions.

View Details

Cavitar

Lighting & Laser Illumination

Cavilux Smart

We at Cavitar are here to bring you Value in Sight with our diode-laser based illumination systems and welding cameras that reveal your application and processes with the level of clarity and detail you have never seen before. We offer versatile products, systems and solutions for industrial visual process monitoring and R&D, as well as for scientific research, for integrators, OEM manufacturers, and end-users alike. In addition to our high performance CAVILUX systems and Cavitar Welding Cameras, we also offer customized solutions.

View Details

Cavitar

Welding Cameras

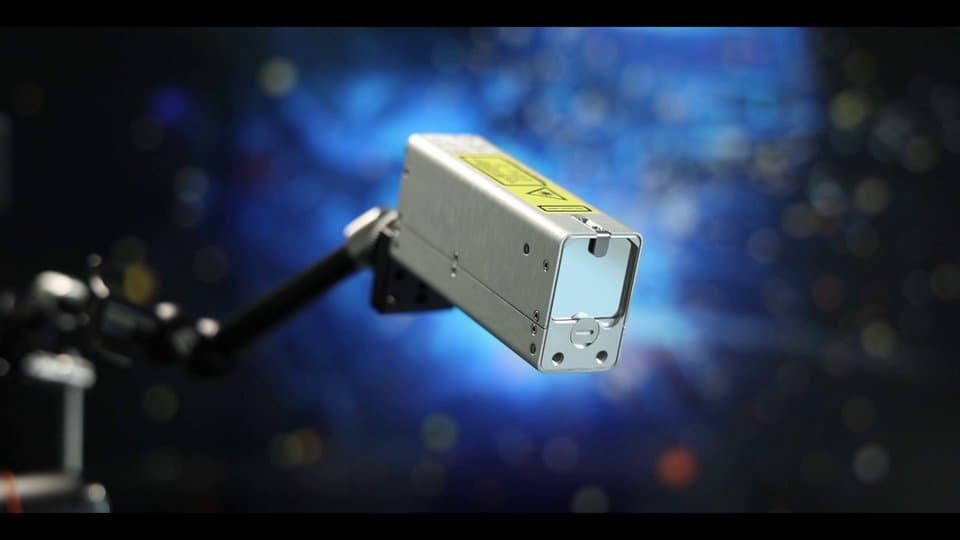

C300 Series Welding Camera

The C300 Series Welding Camera is Cavitar's most compact welding camera, weighing just 200 g in a 30 × 45 × 99 mm body. Its active laser illumination and ArcLessVision imaging see through the bright welding arc, giving a clear real-time view of the melt pool, filler material and torch alignment in TIG, MIG/MAG, TIP TIG and stick welding. Three models: C300 (GigE, 1.5 MP at 70 fps), C330 (GigE, 0.4 MP at 300 fps, up to 430 fps with 2×2 binning) and C350 (USB3, 1.5 MP at 200 fps, up to 500 fps with 2×2 binning).

View Details

Cavitar

Welding Cameras

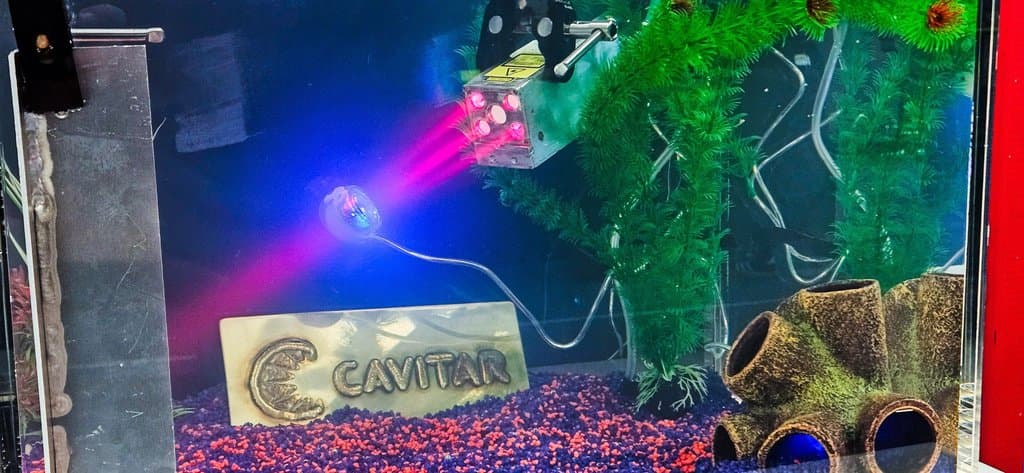

C401 Series Welding Camera (IP68)
