Cavitar C500 Series Welding Camera

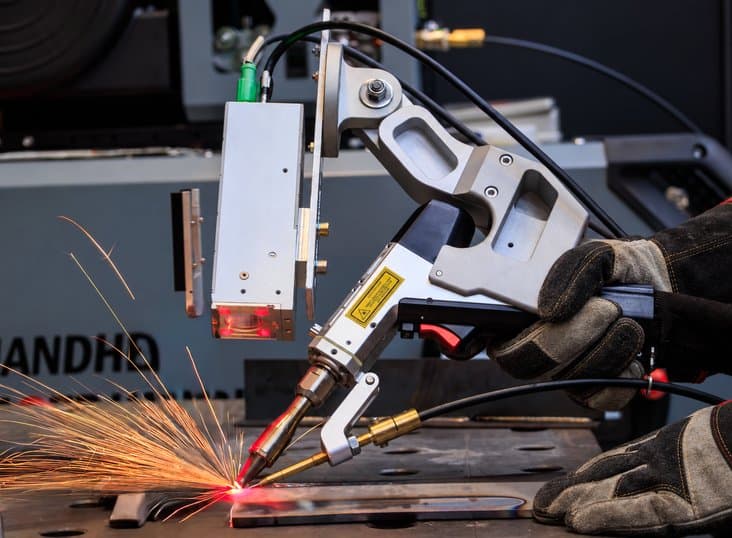

The C500 Series Welding Camera is Cavitar's high-magnification welding camera, with a field of view down to 10 × 8 mm at a 120 mm working distance for close-up detail of the melt pool, keyhole and weld defects. Active laser illumination and ArcLessVision imaging see through the welding arc in real time, including handheld laser welding.

Three models: C500 (GigE, 1.5 MP at 70 fps), C530 (GigE, 0.4 MP at 300 fps, up to 430 fps with 2×2 binning) and C550 (USB3, 1.5 MP at 200 fps, up to 500 fps with 2×2 binning).

Download Datasheet

Technical Specifications

Parameter	Typical Range
Models	C500 (high magnification) · C530 (fast GigE) · C550 (fast USB3)
Electronics & SDK	C500 / C530: Baumer · C550: Hikrobot
Camera Interface	C500: GigE · C530: GigE · C550: USB3
Connectors	C500 / C530: M12 GigE, M12 power · C550: USB3, M12 power
Sensor Resolution	C500: 1440 × 1080 · C530: 720 × 540 · C550: 1440 × 1080
Max Frame Rate (full resolution)	C500: 70fps · C530: 300fps · C550: 200fps
Max Frame Rate (2×2 binning)	C500: 100fps · C530: 430fps · C550: 500fps
Working Distance	120–300mm (adjustable)
Field of View	10 × 8mm @ 120mm · 14 × 11mm @ 150mm · 30 × 22mm @ 300mm
Illumination	650nm laser, Class 3R
Size (W × H × L)	47 × 53 × 158mm (excluding connectors)
Weight	750g
Operating Ambient Temperature	10–300°C (with cooling and insulation, non-condensing)
Cooling	Passive or active (air/liquid circulation)

Key Specifications

•C500: GigE, 1.5 MP (1440 × 1080) at 70fps
•C530: GigE, 0.4 MP (720 × 540) at 300fps, up to 430fps with 2×2 binning
•C550: USB3, 1.5 MP (1440 × 1080) at 200fps, up to 500fps with 2×2 binning
•High magnification: field of view down to 10 × 8mm
•Adjustable working distance: 120–300mm
•650nm Class 3R laser illumination
•47 × 53 × 158mm, 750g

Key Features

•ArcLessVision: clear real-time view through the welding arc (melt pool, keyhole, filler material)
•High magnification for close-up process detail
•Active laser illumination
•Adjustable optics
•Replaceable protective window
•Passive or active (air/liquid) cooling
•Designed, engineered and manufactured in Finland
•Optional accessories: Sync Unit, robotic cables, Temperature Warning Unit (TWU), heatsink plates for passive cooling, 90° view camera adapter, robust protective window holders

Lens Options

•High-magnification adjustable optics, 120–300mm working distance

Software & Integration

•Baumer electronics & SDK (C500, C530)
•Hikrobot electronics & SDK (C550)
•Automation, AI and cloud integration

Applications

•Close-up melt pool and keyhole analysis
•Handheld and robotic laser welding monitoring
•TIG, MIG/MAG, TIP TIG and stick welding visualization
•Early defect detection and weld quality documentation
•Welding research and process development
•Aerospace, automotive, defence, nuclear & energy and advanced manufacturing
