High-Speed Cameras

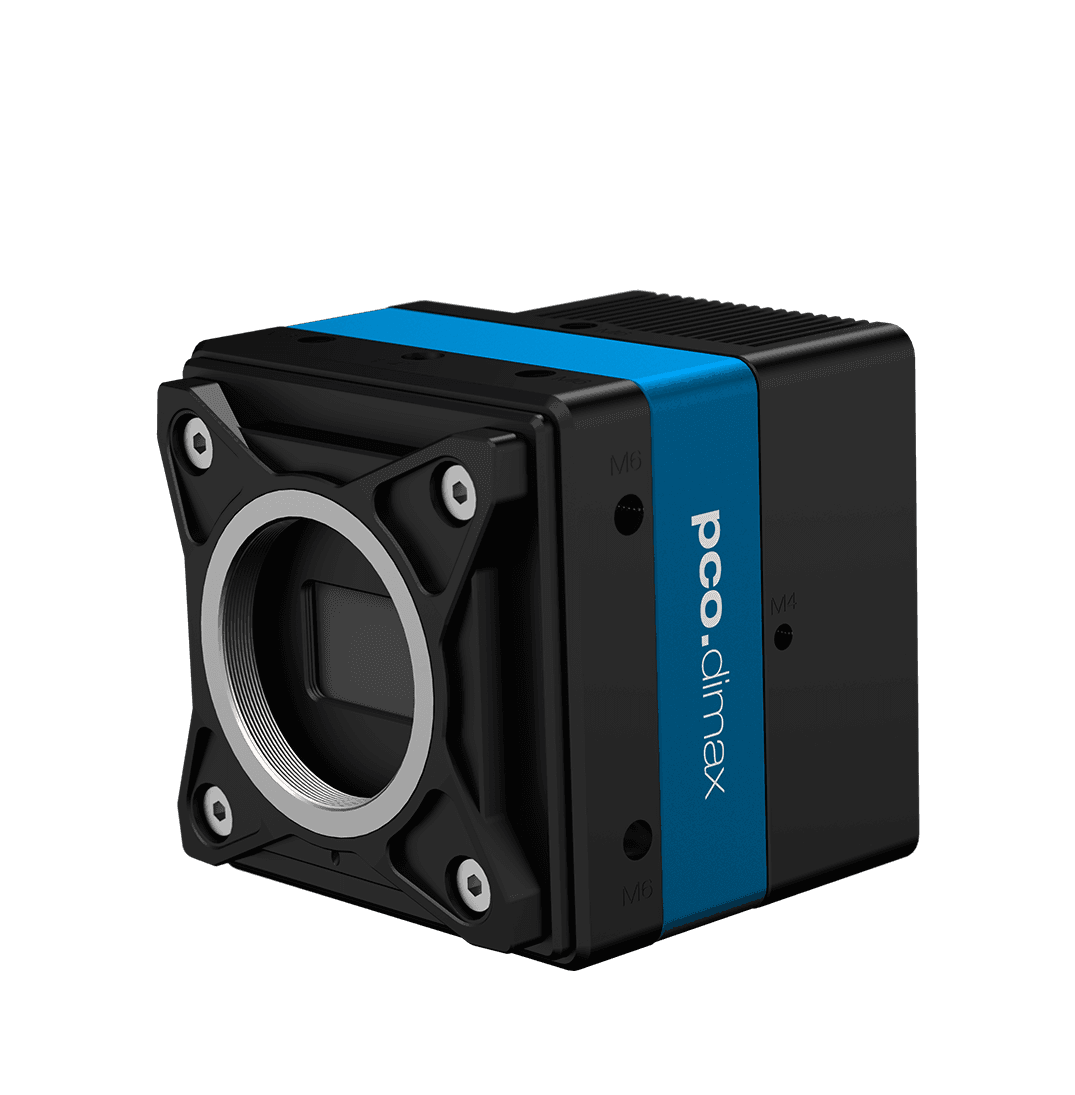

pco.dimax cs8

The pco.dimax cs8 is a compact 8-megapixel high-speed camera from Excelitas PCO, built for automotive safety and crash testing. Its back-illuminated CMOS sensor with global shutter records more than 1,100 fps at full 4K resolution (3840 × 2160) and up to 5,360 fps at Full HD, without motion distortion.

Built for harsh crash-test environments, the camera withstands shocks up to 150 g, records to 25 GB of internal memory (up to 1.81 s at full resolution) and integrates natively with FALCON extra high-speed video software. An optional battery pack and SD card protect test data if power is lost during an impact. Contact HSI for pricing and availability in Canada.

Technical Specifications

Parameter	Typical Range
Sensor	Back-illuminated CMOS, global shutter
Resolution	3840 × 2160 (8 MP)
Pixel Size	5.0 × 5.0 µm
Sensor Diagonal	22.0 mm
Frame Rate @ Full Res	1,141 fps
Frame Rate @ Full HD	Up to 5,360 fps
A/D Conversion	12-bit
Peak Quantum Efficiency	70% @ 550 nm
Readout Noise	3.5 e⁻ (high gain) / 32 e⁻ (low gain)
Full Well Capacity	8,100 e⁻ (high gain) / 41,300 e⁻ (low gain)
Dynamic Range	2,660:1 (high gain) / 1,413:1 (low gain)
Internal Memory	25 GB (up to 1.81 s at full resolution)
Shock Resistance	Up to 150 g
Data Interface	Gigabit Ethernet
Lens Mounts	C-mount, F-mount, EF-mount compatible
Cooling	Thermoelectric with forced air
Dimensions (H×W×L)	88 × 88 × 80 mm
Weight	0.85 kg

Key Specifications

•8 MP back-illuminated CMOS sensor with global shutter
•1,141 fps at full 3840 × 2160 resolution
•Up to 5,360 fps at Full HD
•12-bit A/D conversion, high and low gain modes
•25 GB internal memory, up to 1.81 s at full resolution
•Shock resistance up to 150 g
•Gigabit Ethernet interface
•88 × 88 × 80 mm, 0.85 kg

Key Features

•4K resolution at over 1,100 fps for detailed crash-test footage
•Global shutter eliminates motion distortion at high speed
•Rugged automotive design with 150 g shock resistance
•Integrated 25 GB recording memory, no external storage needed
•Optional battery pack and SD card protect data during power loss
•Native integration with FALCON extra high-speed video software
•Compact housing for tight on-vehicle mounting positions

Lens Options

•C-mount
•F-mount
•EF-mount compatible

Software & Integration

•FALCON extra high-speed video software

Applications

•Automotive safety and crash testing
•Industrial R&D and motion analysis
•Aerospace and defence testing
•Transportation safety programs
•Scientific research

Related Products

All PCO Excelitas products →

PCO Excelitas

Scientific Cameras

pco.edge sCMOS Cameras

PCO scientific cameras utilize advanced scientific CMOS (sCMOS) sensor technology, providing a powerful combination of high resolution, fast frame rates, and extremely low read noise. These cameras are widely used in scientific research laboratories, industrial inspection systems, and advanced imaging setups where accuracy and repeatability are essential. The Excelitas PCO portfolio spans a broad performance range including: • Sensor resolutions from 2 MP to over 10 MP • Frame rates from approximately 40 fps to over 100 fps • Quantum efficiency approaching 95% • Dynamic range greater than 15,000:1 • Extremely low read noise, including sub-electron levels in cooled models • Excellent linearity and signal stability These capabilities enable precise imaging in both low-light environments and high-speed experimental setups, making PCO cameras a strong solution for many demanding imaging applications.

View Details

PCO Excelitas

Scientific CamerasMachine Vision Cameras

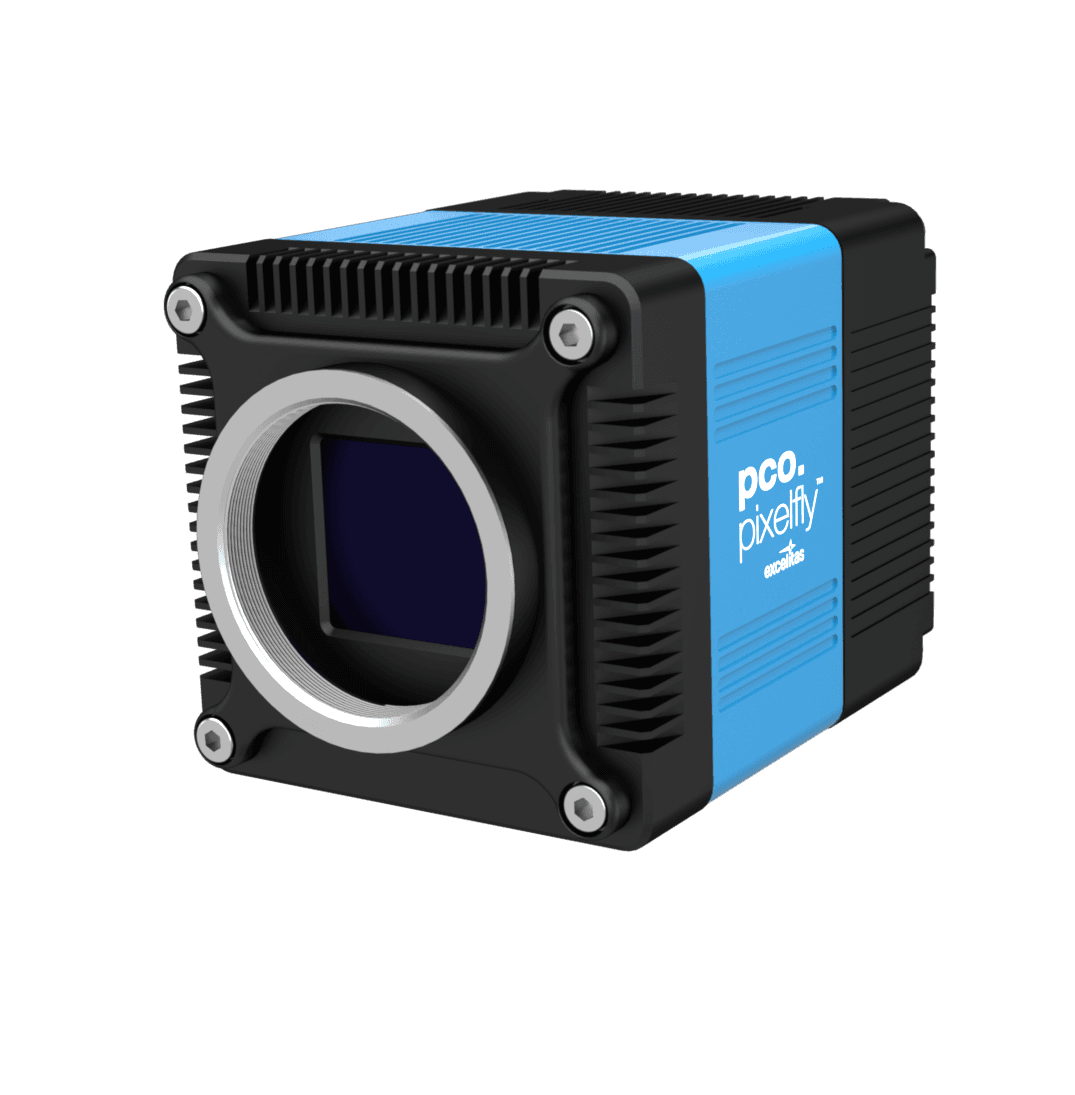

pco.pixelfly bi CLHS (50 / 68 / 105 MP)
