VIC-3D (Digital Image Correlation)

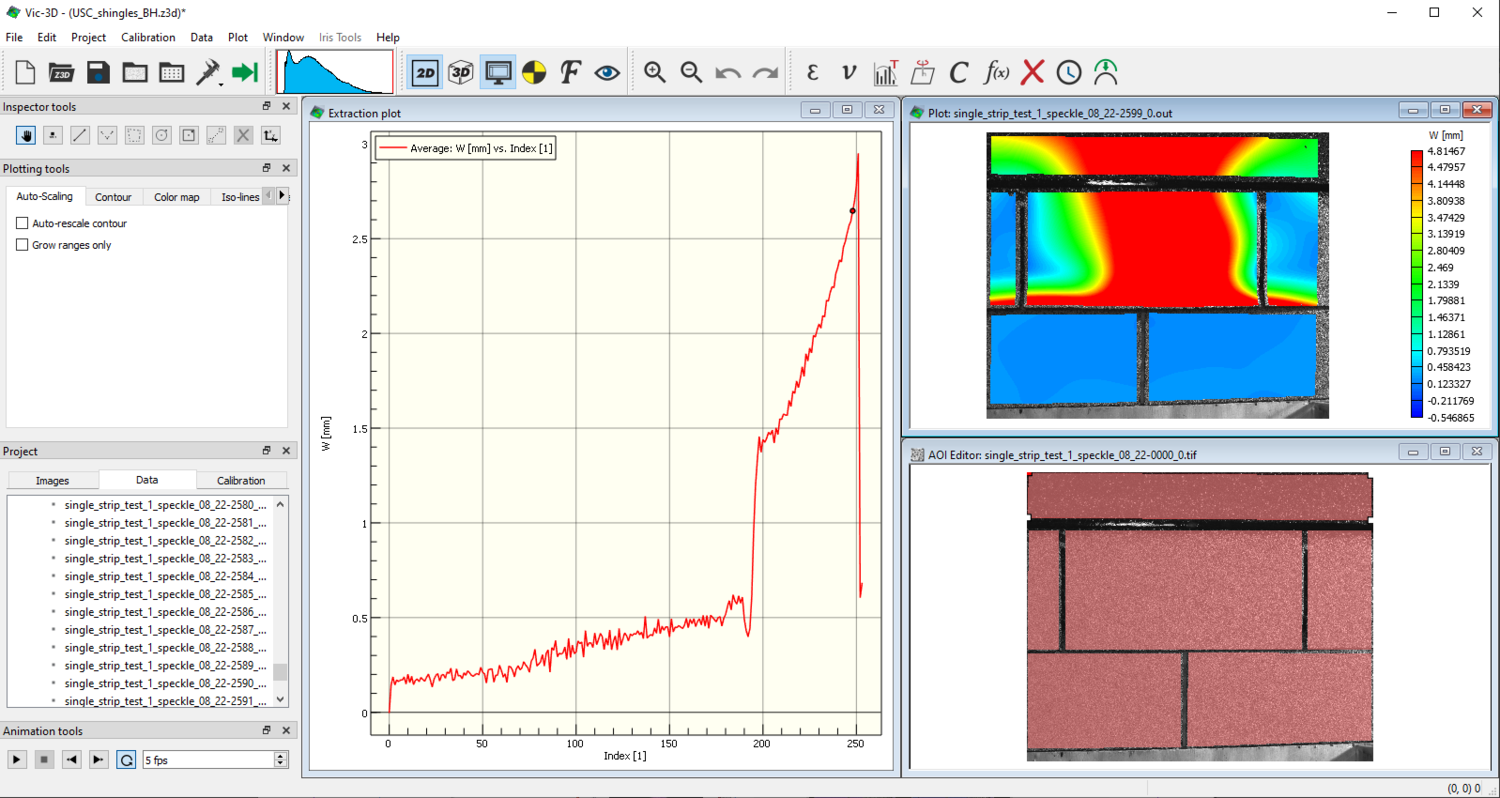

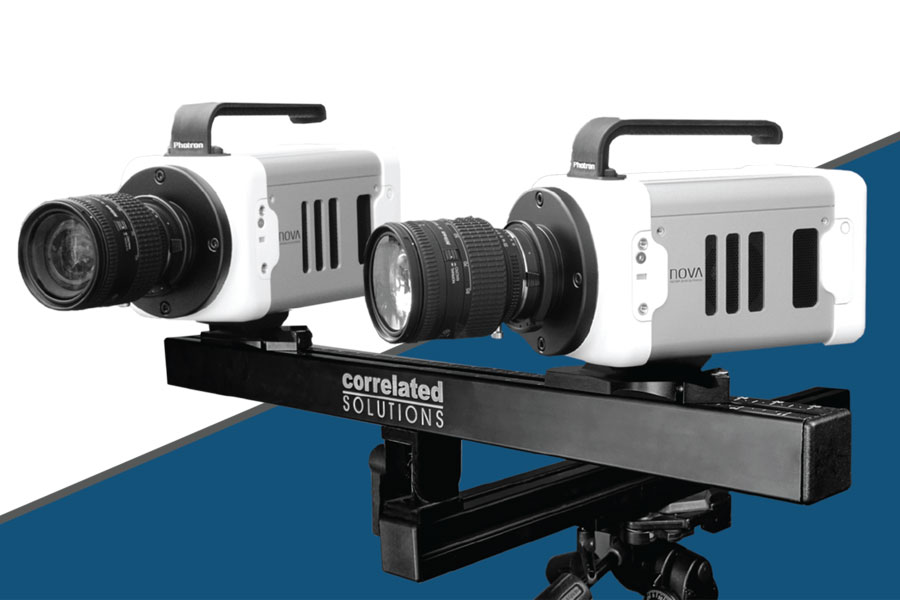

One of the most common configurations of the VIC-3D system is for quasi-static applications for measuring deformation and strain on specimens under ‘slow’ loading. Whether performing simple tensile tests, compression tests or applying large loads to structures, this system has the power to deliver accurate results with high spatial resolution. Because quasi-static applications do not require very fast acquisition rates, these systems benefit from utilizing ultra-high-resolution digital cameras for maximum spatial resolution. VIC-3D systems for quasi-static applications are offered in a wide range of resolution and frame rate combinations starting at 2.3 MP (140 Hz) and up to 45 MP (10 Hz) with many options in between.

Download Datasheet

Technical Specifications

Parameter	Typical Range
Camera Resolution Range	2.3 MP to 45 MP
Frame Rate Range	10 Hz (45 MP) to 140 Hz (2.3 MP)
Measurement Type	Full-field 3D deformation and strain
Software Version	VIC-3D 11.4
API	vicpyx Python module

Key Specifications

•Supports cameras from 2.3 MP (140 Hz) to 45 MP (10 Hz)
•Full-field 3D displacement and strain measurement software
•VIC-3D 11.4 with vicpyx Python module for custom scripting
•Native ISO 12004 (FLC) support
•Polar/cylindrical coordinate extensions
•FEA integration extensions included

Key Features

•vicpyx Python framework for custom DIC analysis scripts within VIC-3D workspace
•End-to-end automation pipelines from acquisition to post-processing
•Fluid Result Integration — writes AOIs and transformations back to project
•Temporal Data Access — access neighboring frames for time-series analysis
•Persistent Configurations — save user-defined extension arguments
•FEA validation workflows (mesh alignment, node comparison)
•Forming Limit Curve (FLC) ISO 12004 generation
•iris data visualization engine with 4K video export
•License-free Viewer Mode for collaborators to open and inspect projects read-only
•Advanced Extensometer — place whole arrays and edit by global/pixel position, length, and direction
•Subtract Thermal Expansion extension to isolate mechanical strain from thermal effects

Software & Integration

•VIC-3D 11.4
•VIC-Snap

Applications

•Quasi-static tensile and compression testing
•Structural load testing
•FEA model validation
•Forming limit curve determination
•Full-field deformation and strain measurement

Related Products

All Correlated Solutions products →

Correlated Solutions

Digital Image Correlation (DIC)

VIC-3D HS

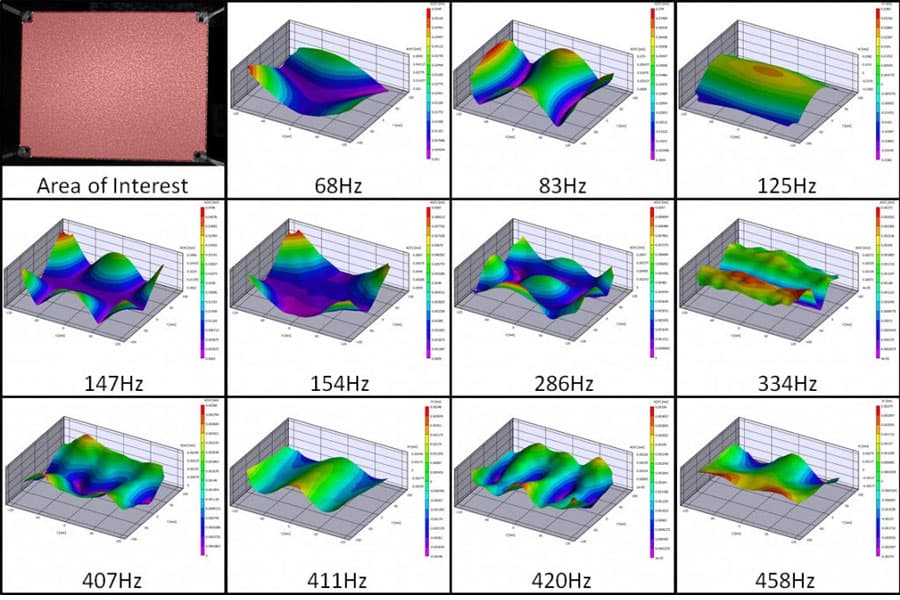

The VIC-3D™ HS Vibration Analysis DIC System by Correlated Solutions, Inc. is a new addition to the VIC-3D™ product line of measurement solutions. This Turn-Key High-Speed Digital Image Correlation system can measure full-field, three-axes displacements during vibration events. Since the acquisition time is very short, the system is capable of measuring operational deflection shapes during transient events as well as the impulse response to an impact. The system achieves resolution in the nanometer range and provides full-field three-axis displacement as well as strain data.

View Details

Correlated Solutions

Digital Image Correlation (DIC)

VIC-3D LS

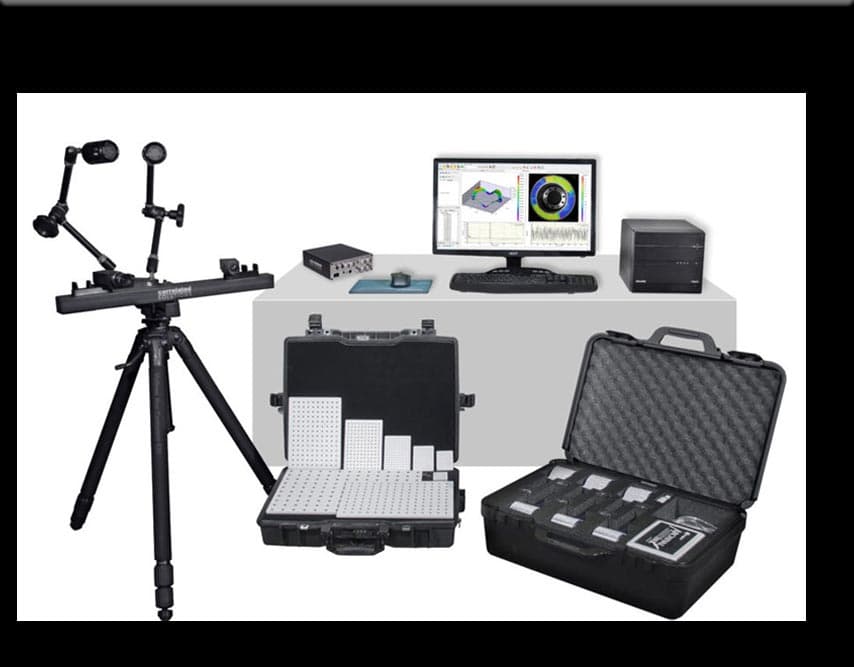

Processing speed is particularly important for long image sequences, such as during high-speed measurements or cyclic loading. As the world-leader in Digital Image Correlation, Correlated Solutions has developed the most efficient algorithms and coding that is commercially available. Up to 85,000 data points/second can be processed using a modern consumer PC with a single Intel Quad-Core processor. This is at least 10 times faster than any other commercially available systems of which we are aware.

View Details

Correlated Solutions

Digital Image Correlation (DIC)

VIC-EDU

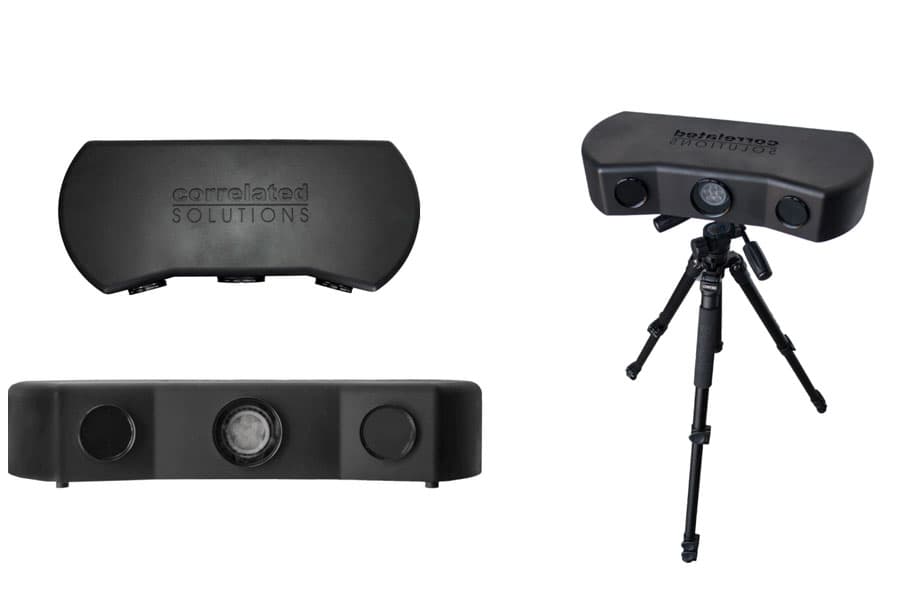

The VIC Educational System (VIC-EDU) is a low-cost solution developed for academic institutions to assist in teaching the digital image correlation technique to undergraduate and graduate students. The VIC-EDU system utilizes the same accurate DIC algorithms found in the powerful VIC-3D software, while allowing users to acquire data quickly and easily. The system features a simplified setup, streamlined image acquisition, and ideal post-processing features. The stereo cameras are mounted inside a protective enclosure, which includes an integrated LED light source, a cooling fan, and an exterior USB & power connectors. The system also includes a tripod, tripod head, speckle roller, ink pad, calibration target, and a convenient carrying case.

View Details

Photron

Analysis & Control Software

6D-Marker

The Photron 6D-Marker is a simple motion capture system that tracks and measures 3D image data in six degrees of freedom (X, Y, Z, Roll, Pitch and Yaw) using only one camera and one marker. High-precision printed reference points, a variable moiré pattern (VMP) and a flip detection pattern (FDP) let each marker's position and orientation be measured more accurately than with conventional AR markers. Setup requires only a simple lens calibration, and 6D-Marker Analyst software directly controls FASTCAM Nova, Mini and MH6 high-speed cameras, making the system well suited to automotive tests such as engine vibration and vehicle impacts that are difficult to analyze with a standard multi-camera motion capture system.
