Xcitex ProAnalyst

Calibrate scenes, process videos, track motion, and graph motion data with the award-winning ProAnalyst software.

Track motion, instead of markers

ProAnalyst 2023 is the newest, most powerful version of ProAnalyst yet, with 20+ analysis toolkits available. ProAnalyst 2023 gives you the tools you need to tackle any motion analysis application.

Stabilize, calibrate, and process images to prepare for analysis

Track features to measure motion quantities in 2-D and in 3‑D

Compute angle and distance measurements from tracked features

Graph motion data inside ProAnalyst and export to a variety of formats

Download Datasheet

Technical Specifications

Parameter	Typical Range
Product	ProAnalyst Motion Analysis Software
Editions	Professional, Lite, TrackOne, 3D Professional, 3D Flight Path, 3D Flight Tracker
Image Adjustments / Filters	50+
Analysis Toolkits	20+
Video Formats	AVI, CIN, WMV, ASF, MOV, MPG
Image Formats	BMP, JPG, TIFF
Export Formats	Excel, DIAdem, MATLAB, PowerPoint, HTML

Key Specifications

•Automated tracking without requiring markers
•2D and 3D motion analysis capabilities
•50+ image controls and filters
•20+ analysis toolkits
•Video format support: AVI, CIN, WMV, ASF, MOV, MPG
•Image format support: BMP, JPG, TIFF
•Data export to Excel, DIAdem, MATLAB, PowerPoint, HTML

Key Features

•Automated tracking — no physical markers required
•Measure displacement, velocity, acceleration, angles, and distances
•Track multiple objects simultaneously
•3D analysis using two synchronized camera views (3D Professional edition)
•Flight path tracking from ground-based or on-board cameras (3D Flight Path / 3D Flight Tracker)
•Batch processing and scripting for automated workflows
•Full-featured image processing pipeline with 50+ adjustments

Software & Integration

•ProAnalyst Professional
•ProAnalyst Lite
•ProAnalyst TrackOne
•ProAnalyst 3D Professional
•ProAnalyst 3D Flight Path
•ProAnalyst 3D Flight Tracker

Applications

•High-speed camera video analysis
•Ballistics and impact testing
•Biomechanics and sports science
•Aerospace and defense flight tracking
•Automotive crash test analysis
•Industrial machine motion analysis

Related Products

All Xcitex products →

Photron

Analysis & Control Software

6D-Marker

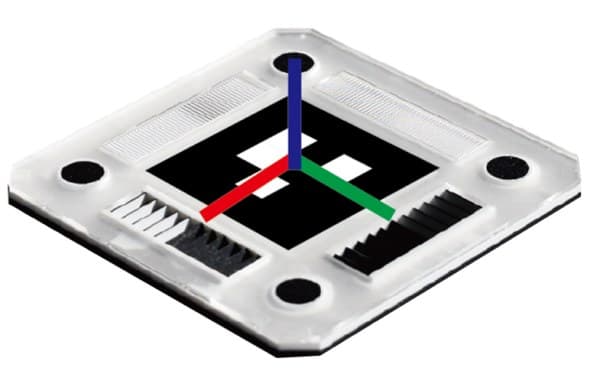

The Photron 6D-Marker is a simple motion capture system that tracks and measures 3D image data in six degrees of freedom (X, Y, Z, Roll, Pitch and Yaw) using only one camera and one marker. High-precision printed reference points, a variable moiré pattern (VMP) and a flip detection pattern (FDP) let each marker's position and orientation be measured more accurately than with conventional AR markers. Setup requires only a simple lens calibration, and 6D-Marker Analyst software directly controls FASTCAM Nova, Mini and MH6 high-speed cameras, making the system well suited to automotive tests such as engine vibration and vehicle impacts that are difficult to analyze with a standard multi-camera motion capture system.

View Details

Correlated Solutions

Analysis & Control SoftwareDigital Image Correlation (DIC)

VIC-3D (Digital Image Correlation)

One of the most common configurations of the VIC-3D system is for quasi-static applications for measuring deformation and strain on specimens under ‘slow’ loading. Whether performing simple tensile tests, compression tests or applying large loads to structures, this system has the power to deliver accurate results with high spatial resolution. Because quasi-static applications do not require very fast acquisition rates, these systems benefit from utilizing ultra-high-resolution digital cameras for maximum spatial resolution. VIC-3D systems for quasi-static applications are offered in a wide range of resolution and frame rate combinations starting at 2.3 MP (140 Hz) and up to 45 MP (10 Hz) with many options in between.

View Details
