Lighting & Laser Illumination

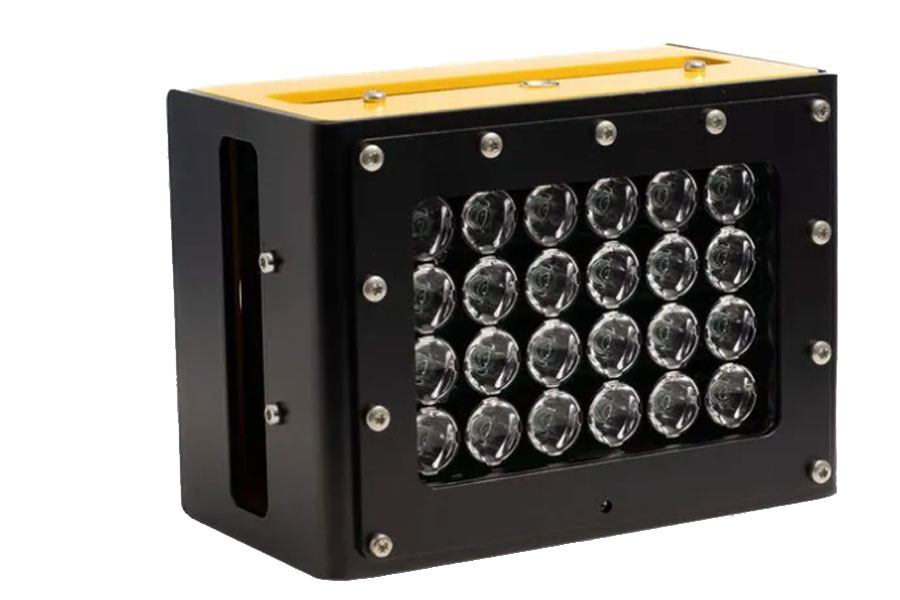

GS Vitec MultiLED LT MAX

by GS Vitec

GS Vitec
GS Vitec MultiLED LT MAX

Continuous light

White, Blue, 660 nm red

Changeable lens

Long lifetime ( 50.000 h+)

Small size

Low heat radiation

Less power consumption

Download Datasheet

Technical Specifications

ParameterTypical Range
Luminous Flux (White)24,000 lumen
Power240 W at 24 Vdc
Dimensions146 × 106 × 88 mm
Weight1,365 g
Mounting3/8" thread
IP ClassIP 20
LED Lifetime50,000 h+
Light ModesContinuous only (no strobe/pulsed)
Color OptionsWhite, warm white, blue, 660 nm red
Operating Temperature-25°C to +40°C

Key Specifications

  • •Luminous flux: 24,000 lumen (white), warm white 13,200 lm
  • •Power: 240 W at 24 Vdc
  • •Dimensions: 146 × 106 × 88 mm, weight 1,365 g
  • •Mounting: 3/8" thread
  • •IP class: IP 20
  • •Operating temperature: -25°C to +40°C, storage -25°C to +80°C
  • •Housing: aluminium
  • •LED lifetime: 50,000+ hours
  • •Color options: white LED, warm white LED, blue LED, 660nm red LED
  • •Light mode: continuous only (no strobe/pulsed function)

Key Features

  • •Long LED lifetime of 50,000+ hours for low maintenance operation
  • •Compact form factor relative to output (146×106×88mm, 1.365kg)
  • •Available in white, warm white, blue, and 660nm red LED versions
  • •Continuous illumination mode — ideal for steady-light applications

Lens Options

  • •Standard: 12° × 12° (horizontal × vertical)
  • •Optional: 25°×25°, 40°×40°, 60°×60°, 30°×13°, 60°×12°

Applications

  • •Continuous illumination for cameras and machine vision
  • •Plant growth and horticulture lighting (blue/red LED variants)
  • •Long-duration inspection tasks
