Lighting & Laser Illumination

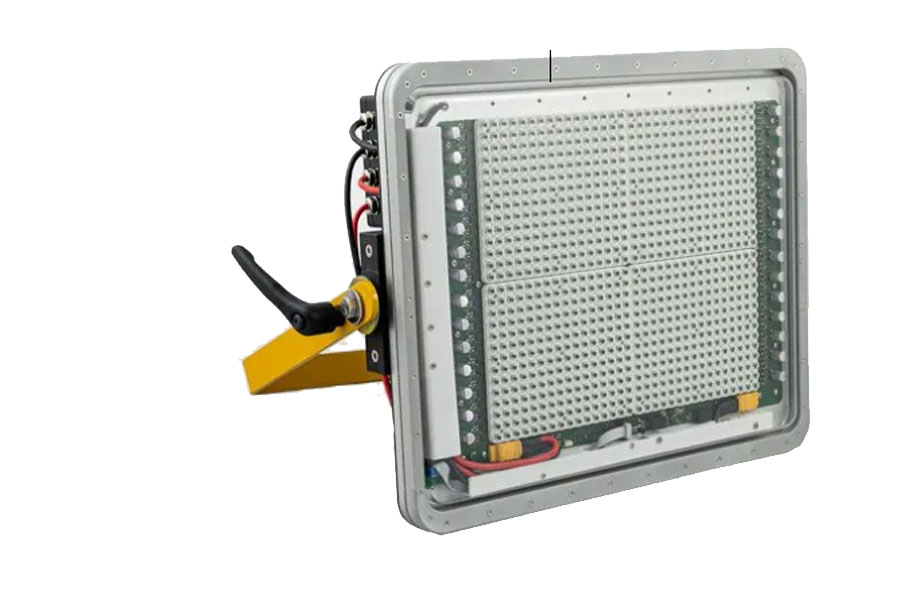

GS Vitec MultiLed ZX

by GS Vitec

400.000 lm continuous

Color LED available

Changeable lenses

Continuous or pulsed operation

Down to 400 ns strobe

High-G or IP67 options

Download Datasheet

Technical Specifications

Parameter	Typical Range
Luminous Flux (White)	400,000 lumen
Power	~4 kW
LEDs	372
Dimensions	500 × 580 × 165 mm
Weight	22.5 kg
Mounting	3/8" thread
Min Strobe Width	400 ns
Pulse Delay	220 ns
Rise Time	90 ns
Fall Time	90 ns
Supply Voltage	30–50 Vdc
Color Options	White, warm white, NiR (810/850/940 nm)

Key Specifications

•Luminous flux: 400,000 lumen (white)
•Power: approximately 4 kW
•372 LEDs
•Dimensions: 500 × 580 × 165 mm, weight 22.5 kg
•Mounting: 3/8" thread
•Supply voltage: 30–50 Vdc
•Min strobe width: 400 ns; delay 220 ns; rise/fall time 90 ns
•NiR options: 810 nm (~2,150,000 mW), 850 nm (~1,950,000 mW), 940 nm (~2,250,000 mW)

Key Features

•Highest output MultiLed model — 400,000 lumen white
•Ultra high-speed strobe capability down to 400 ns (with GX8)
•Optional IP67 weatherproof version for outdoor use
•Optional High-G version for vibration/shock environments
•372 individually-controlled LEDs
•Available in white, warm white, and NiR LED versions

Applications

•Large-area high-speed illumination
•Outdoor high-speed imaging
•Automotive crash testing
•Large wind tunnel flow visualization
•Defense and ballistics imaging
