Lighting & Laser Illumination

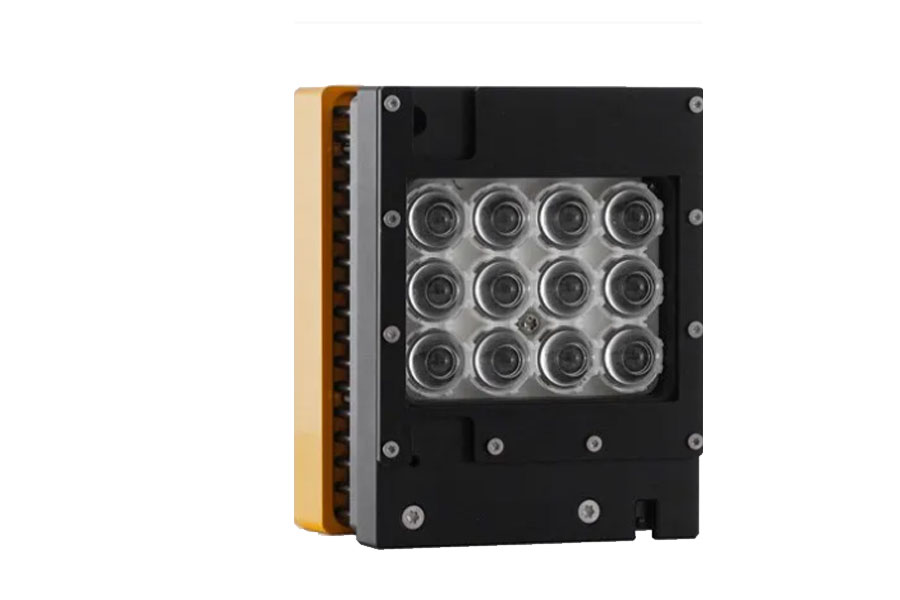

GS Vitec MultiLed QX

by GS Vitec

Exchangeable lenses

12.000 lm white, color or NiR LED

Pulsed or continuous

Small size

Down to 250 ns strobe

Download Datasheet

Technical Specifications

Parameter	Typical Range
Luminous Flux (White)	12,000 lumen
Power	150 W at 48 Vdc
LEDs	12
Dimensions	78 × 104 × 64 mm
Weight	650 g
Mounting	1/4" thread
IP Class	IP 20
Min Strobe Width	170 ns (with GX8)
Pulse Delay (level mode)	290 ns
Pulse Delay (edge mode)	700 ns ±20 ns
Rise Time (white/color)	60 ns / 25 ns
Fall Time (white/color)	160 ns / 15 ns
Operating Temperature	-25°C to +40°C
Standard Lens	12° FWHM, exchangeable

Key Specifications

•Luminous flux: 12,000 lumen (white), warm white 6,600 lm
•Power: 150 W at 48 Vdc
•12 LEDs
•Dimensions: 78 × 104 × 64 mm, weight 650 g
•Mounting: 1/4" thread
•IP class: IP 20
•Operating temperature: -25°C to +40°C, storage -25°C to +80°C
•Housing: aluminium
•Light modes: continuous, level, timed
•Intensity adjustable: 1% to 100%
•NiR options: 810 nm (~25,100 mW), 850 nm (~22,500 mW), 940 nm (~24,800 mW)

Key Features

•Ultra high-speed strobe technology via GS Vitec GX8 controller
•Compact and lightweight design (78×104×64 mm, 650 g)
•Down to 170 ns strobe length at full output power (with GX8)
•Available in white, color, and NiR LED versions
•Powered directly from GX8 controller via single MULTILED GEN4 system cable

Lens Options

•Standard: 12° FWHM
•Optional (QX Plus): 25°×25°, 40°×40°, 60°×60°, 30°×13°, 60°×12°

Applications

•High-speed camera illumination
•Machine vision
•Compact space-constrained installations
