Long Recording Cameras

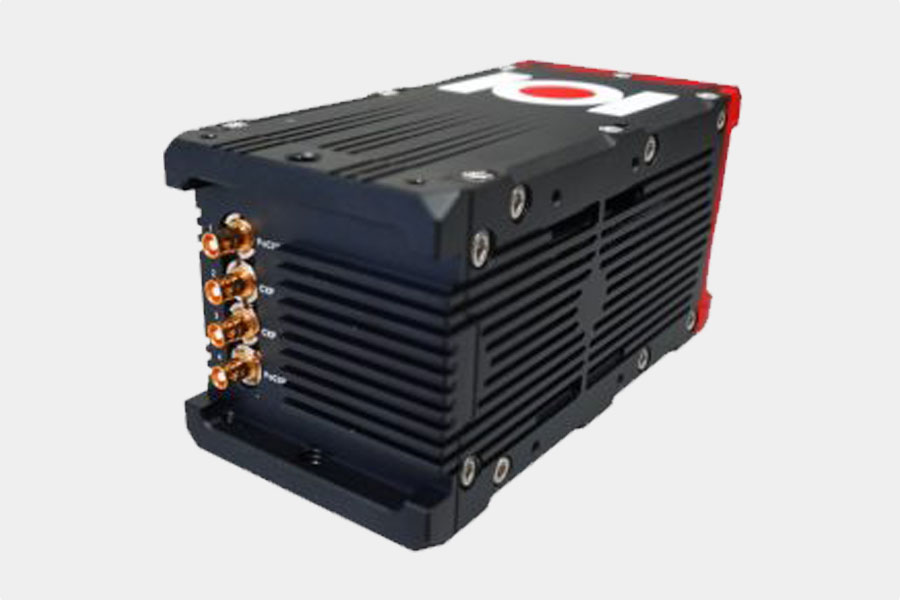

IO Industries Rodeo DVR

Rodeo is an ultra-compact, rugged, video recorder, designed for RAW recording from high-performance video cameras. Rodeo is ideal for demanding video recording applications such as volumetric capture, 4D face/body scanning, test range recording and industrial trouble-shooting; and is an excellent choice for multi-camera setups. Rodeo features either a CoaXPress 2.0 or Camera Link video interface and reliably records long sequences of video from a broad range of computer vision and scientific cameras made by IO Industries and other camera manufacturers.

Download Datasheet

Technical Specifications

Parameter	Typical Range
Video Input (CXP)	CoaXPress via 1/2/4 coaxial connections, max 12.5 Gbps/link
Video Input (CL)	Camera Link Base/Medium/Full/80-bit, max 85 MHz
Internal Recording	Lossless-compressed or uncompressed RAW to SSD (up to 7680 GB)
Network	10 Gigabit Ethernet (SFP+)
Synchronization	IEEE1588 PTP, SMPTE LTC
SDI Output	12G/6G/3G/HD-SDI, UHD/HD up to 60fps
Additional I/O	TTL input/output (2-in, 3-out)
Dimensions	60.2 x 62.0 x 124.3 mm
Weight	590g
Power	12V DC, ~14W
Temperature	0–30°C

Key Specifications

•CoaXPress video input via 1/2/4 coaxial connections (max 12.5 Gbps per link, 25 Gbps total)
•Camera Link video input: Base/Medium/Full/80-bit (max 85 MHz clock)
•Lossless-compressed (CX) or uncompressed (CL) RAW recording to internal SSD up to 7680 GB
•10 Gigabit Ethernet via SFP+ port (copper or fiber)
•IEEE1588 PTP synchronization for timestamping and exposure sync
•SMPTE LTC input for frame timestamping
•SDI video output: 12G/6G/3G/HD-SDI, UHD/HD up to 60fps
•Tri Level Sync input for camera exposure synchronization
•TTL I/O: 2 inputs, 3 outputs
•Dimensions: 60.2 x 62.0 x 124.3 mm, 590g
•Power: 12V DC, ~14W plus camera power (PoCXP/PoCL)
•Operating temperature: 0–30°C

Key Features

•Records from IOI or third-party CoaXPress or Camera Link cameras
•FPGA-based reliable recording directly to internal SSD
•10 GigE with SFP+ for copper or fiber connectivity
•Low-latency SDI live video monitoring output
•IEEE1588 PTP and SMPTE LTC for multi-camera synchronization
•Compact one-piece rugged design (60.2 x 62.0 x 124.3 mm)
•StudioCap-VC software for multi-DVR and camera management

Software & Integration

•IO Industries StudioCap-VC software
•StudioCap-VC SDK for custom application development

Applications

•Multi-camera motion recording
•Volumetric video capture
•Industrial troubleshooting
•4D face and body scanning
•Athletic motion recording
•Test range recording

Related Products

All IO Industries products →

IO Industries

Machine Vision Cameras

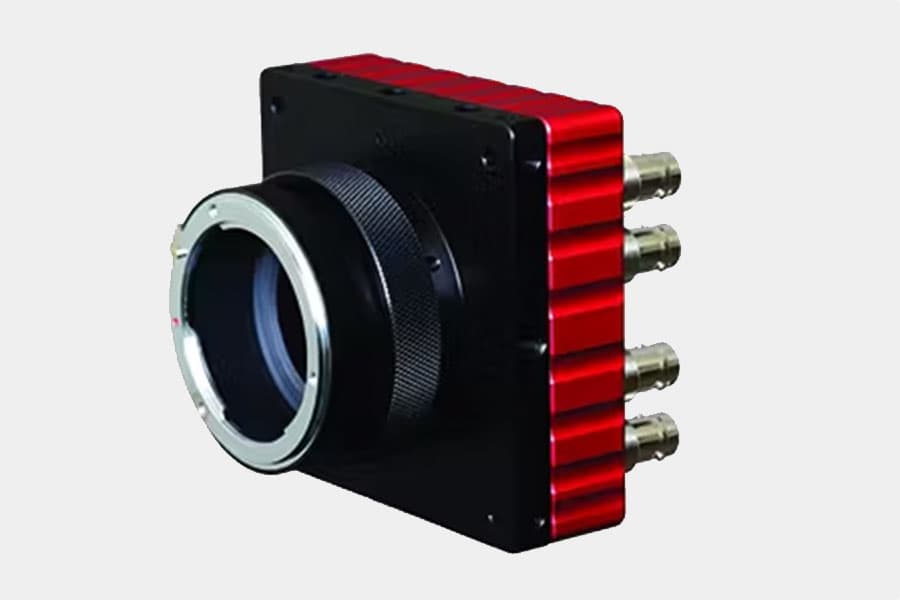

Flare CX

The Flare™ series is a family of high-throughput video cameras featuring high-resolution and high frame rate image sensors and a reliable CoaXPress industrial video interface. Available CMOS image sensors include the CMV12000 12.6MP sensor and the CMV50000 47.5MP sensor. All sensors use global shutter technology, with high-sensitivity and low-noise pixel designs. Monochrome and color models are available to suit a variety of applications in industrial and scientific imaging, high speed motion analysis, wide area observation, as well as virtual reality and special effects.

View Details

IO Industries

Machine Vision Cameras

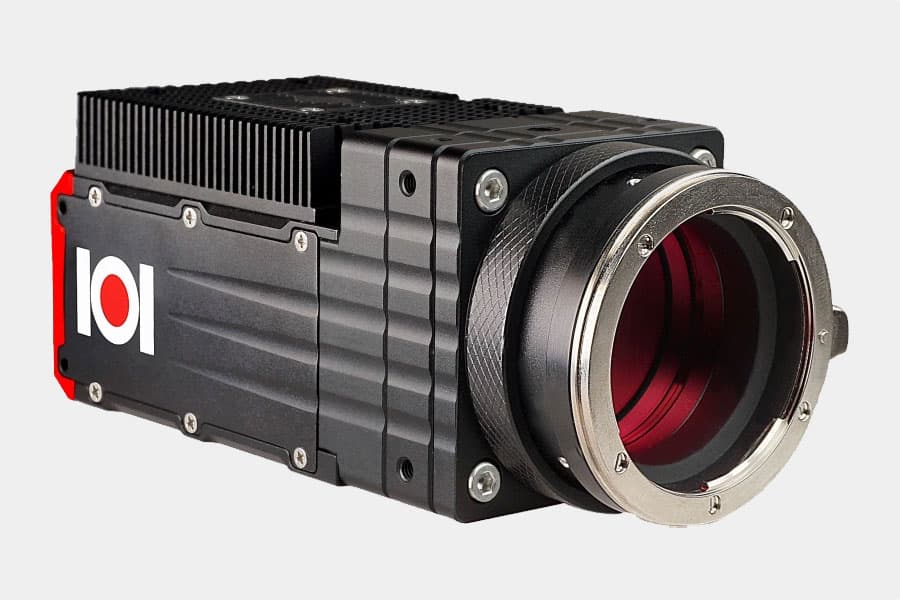

Redwood Cams

The Redwood™ series is a family of high-throughput industrial video cameras designed with some of the fastest high-resolution CMOS image sensors available today. The 120C335 models use ams CMV12000 12.6MP sensors, the 447X52 models feature use XGS45000 44.7MP sensors, the 52G872 and 210G230 models use Gpixel GSPRINT4521 21MP sensors and the 654G71 models use Gpixel GMAX3265 65MP sensors. All these sensors feature global shutter technology, with high-sensitivity and low-noise pixel designs. Both monochrome and color camera models are available to suit a variety of applications in industrial and scientific imaging, wide area observation, as well as virtual reality and special effects.

View Details

IO Industries

Long Recording Cameras

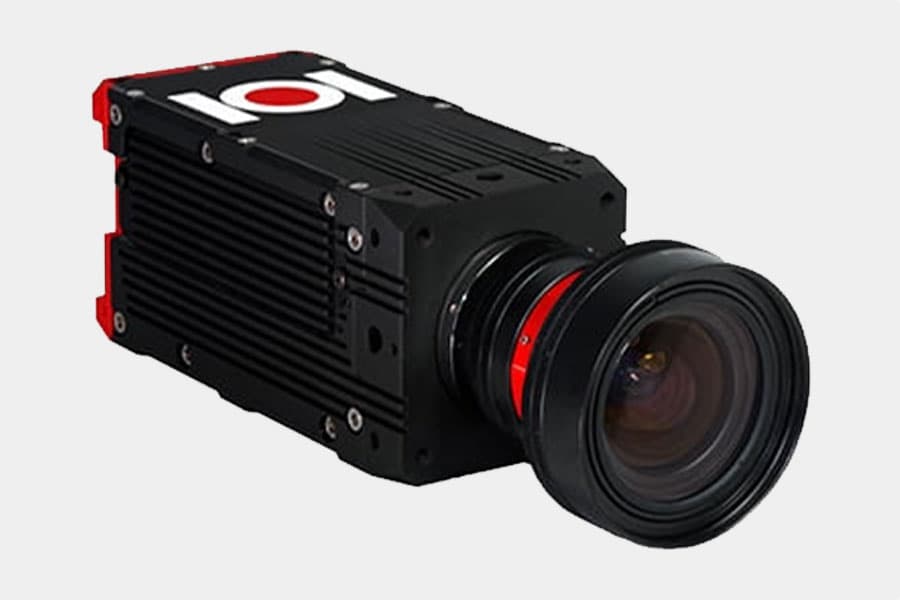

Volucam

The Volucam™ is a compact, multi-format, variable frame rate video camera with internal RAW video recording. A variety of CMOS sensors are supported, allowing options for high resolution video up to 26.2MP or high frame rate HD video recording at over 300fps. Easy to configure and operate, this camera is ideal for synchronized multi-camera video recording applications such as volumetric video capture studios, light field capture arrays and multi-angle motion analysis systems.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

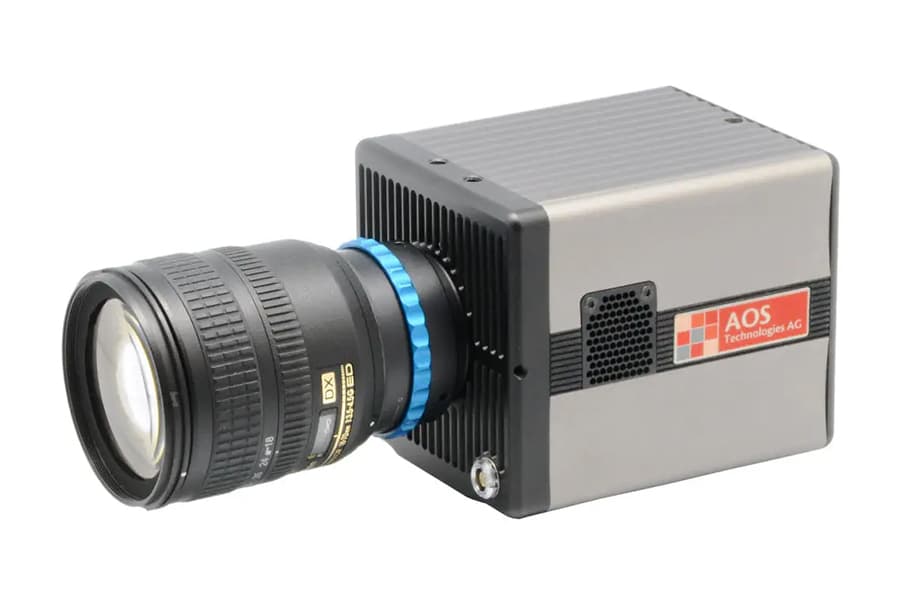

J-PRI
