IO Industries Redwood Cams

by IO Industries

IO Industries

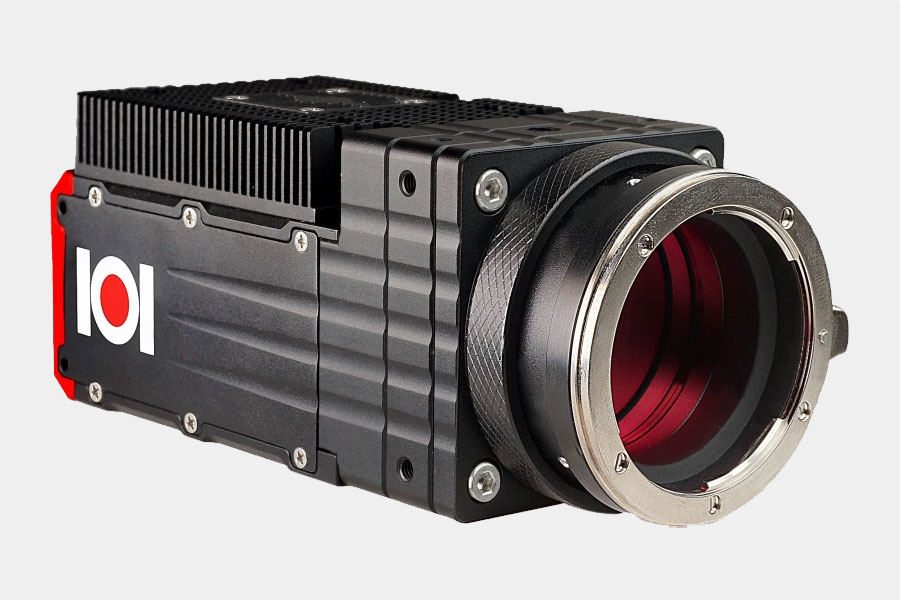

IO Industries Redwood Cams

The Redwood™ series is a family of high-throughput industrial video cameras designed with some of the fastest high-resolution CMOS image sensors available today. The 120C335 models use ams CMV12000 12.6MP sensors, the 447X52 models feature use XGS45000 44.7MP sensors, the 52G872 and 210G230 models use Gpixel GSPRINT4521 21MP sensors and the 654G71 models use Gpixel GMAX3265 65MP sensors. All these sensors feature global shutter technology, with high-sensitivity and low-noise pixel designs. Both monochrome and color camera models are available to suit a variety of applications in industrial and scientific imaging, wide area observation, as well as virtual reality and special effects.

Technical Specifications

ParameterTypical Range
SensorGpixel GMAX3265
Resolution9344 x 7000 (65.4 MP)
Frame Rate (8-bit)71 fps
Frame Rate (10-bit)57 fps
Frame Rate (12-bit)31 fps
Optical Format35mm Full Frame (37.4mm diagonal)
Sensor TypeCharge-Domain Global Shutter CMOS
Pixel Size3.2 x 3.2 µm
Dynamic Range66 dB (12-bit ADC), 62.3 dB (10-bit ADC)
InterfaceCoaXPress 2.0 (coaxial or fiber QSFP+)
Multiple ROIUp to 16 windows with 2x2 binning option
Lens MountF-mount, M52x0.75, Active Canon EF
Dimensions62.0 x 62.0 x 154.7 mm (with F-mount)
Weight715g (with F-mount, no lens)
Power12W @ 12V DC
Temperature-10°C to 50°C

Key Specifications

  • •Gpixel GMAX3265 sensor at 9344 x 7000 resolution (65.4 MP)
  • •71 fps (8-bit), 57 fps (10-bit), 31 fps (12-bit) at full resolution
  • •35mm Full Frame optical format (37.4mm diagonal)
  • •Charge-Domain Global Shutter CMOS sensor
  • •Monochrome or color (Bayer) options
  • •3.2 x 3.2 µm pixel size
  • •Dynamic range: 66 dB (12-bit ADC), 62.3 dB (10-bit ADC); optional Interleaved HDR
  • •CoaXPress 2.0: up to 4 links at 12.5 Gbps via coaxial or fiber (QSFP+)
  • •Up to 16 ROI windows with optional 2x2 binning
  • •Selectable 8/10/12-bit output
  • •Dimensions: 62.0 x 62.0 x 154.7 mm (with F-mount)
  • •Weight: 715g (with F-mount, no lens)
  • •Power: 12W @ 12V DC via Hirose 6-pin
  • •Operating temperature: -10°C to 50°C

Key Features

  • •65.4 megapixel resolution with Charge-Domain Global Shutter
  • •High frame rates: up to 71 fps (8-bit) at full 65MP resolution
  • •CoaXPress 2.0 with coaxial or fiber optic (QSFP+) cabling options
  • •Up to 16 independent ROI windows with 2x2 binning
  • •Optional Interleaved HDR mode
  • •Flexible lens mounts: F-mount, M52, Active Canon EF
  • •GenICam compliant
  • •Redwood Control software for standalone operation
  • •Trigger double exposure (PIV) support

Lens Options

  • •F-mount (included)
  • •M52 x 0.75 mount
  • •Active Canon EF-mount
  • •Active EF-mount with OLPF/IR-Cut filter option

Software & Integration

  • •GenICam compatible
  • •Redwood Control software

Applications

  • •Automated optical inspection
  • •Wide area observation
  • •Virtual reality and special effects
  • •Scientific research
