Machine Vision Cameras

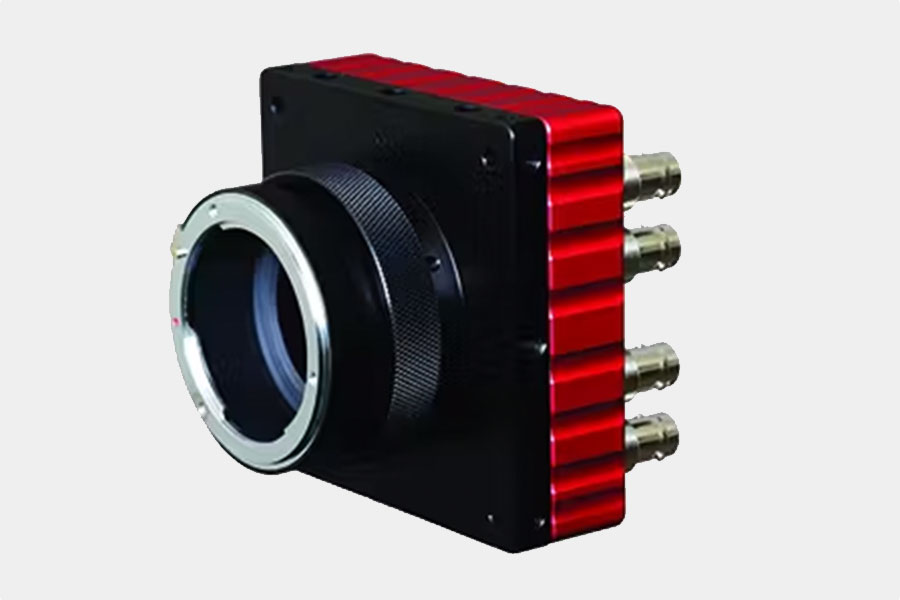

IO Industries Flare CX

The Flare™ series is a family of high-throughput video cameras featuring high-resolution and high frame rate image sensors and a reliable CoaXPress industrial video interface. Available CMOS image sensors include the CMV12000 12.6MP sensor and the CMV50000 47.5MP sensor. All sensors use global shutter technology, with high-sensitivity and low-noise pixel designs. Monochrome and color models are available to suit a variety of applications in industrial and scientific imaging, high speed motion analysis, wide area observation, as well as virtual reality and special effects.

Download Datasheet

Technical Specifications

Parameter	Typical Range
Sensor	CMOSIS CMV50000
Resolution	7920 x 6004 (47.5 MP)
Frame Rate (full res)	30.9 fps
Optical Format	35mm Full Frame (45.7mm diagonal)
Sensor Type	CMOS, global electronic shutter
Pixel Size	4.6 x 4.6 µm
Dynamic Range	64 dB
Bit Depth	8/10/12-bit selectable
Interface	CoaXPress (1/2/4 links, up to CXP-6)
Multiple ROI	Up to 10 windows
Lens Mount	F-mount, M58x0.75, Active Canon EF
Dimensions	79.7 x 79.7 x 78.0 mm (with F-mount)
Weight	610g (with F-mount, no lens)
Power	7.9W, 7-26V DC
Temperature	-30°C to 45°C

Key Specifications

•CMOSIS CMV50000 sensor at 7920 x 6004 resolution (47.5 MP)
•30.9 fps at full resolution
•35mm Full Frame optical format (45.7mm diagonal)
•Global electronic shutter CMOS sensor
•Monochrome or color (Bayer) options
•4.6 x 4.6 µm pixel size
•64 dB dynamic range
•CoaXPress output: 1/2/4 links up to 6.25 Gbps (CXP-6)
•Up to 10 separate ROI windows
•8/10/12-bit selectable pixel depth
•Dimensions: 79.7 x 79.7 x 78.0 mm (with F-mount)
•Weight: 610g (with F-mount, no lens)
•Power: 7.9W, 7–26V DC via Hirose 12-pin or 24V via PoCXP
•Operating temperature: -30°C to 45°C

Key Features

•47.5 megapixel resolution on 35mm full-frame sensor
•Global electronic shutter eliminates rolling shutter artifacts
•CoaXPress output supporting up to 4 links at 6.25 Gbps
•Up to 10 independent ROI windows for flexible imaging
•Selectable 8/10/12-bit data output
•Compact fanless low-power design
•Auto exposure and auto white balance
•Multiple lens mount options (F-mount, M58, Active Canon EF)
•Trigger input/output via Hirose 12-pin

Lens Options

•F-mount (included)
•M58 x 0.75 mount
•Active Canon EF-mount
•Additional mounts available on request

Software & Integration

•GenICam compatible
•Flare Control software

Applications

•Automated inspection
•Aerial imaging and mapping
•Wide area surveillance
•Specialty video production
