Application

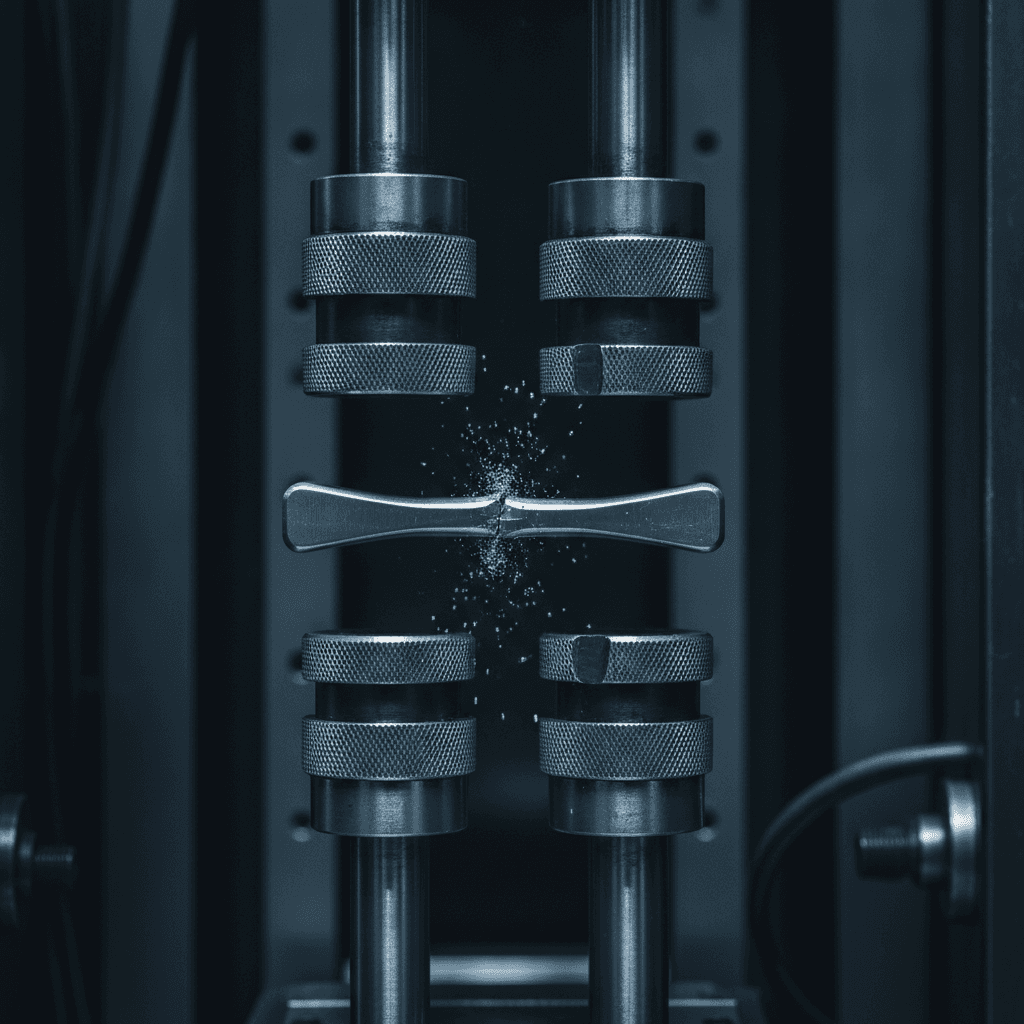

Materials & Mechanical Testing

High-speed imaging for structural analysis, impact testing, and material deformation

Overview

Materials and mechanical testing requires precise capture of deformation, fracture propagation, and failure dynamics under stress. High-speed cameras paired with Digital Image Correlation (DIC) systems enable full-field strain and displacement measurement at rates far beyond what traditional instrumentation can achieve. Combined with servo-hydraulic, electrodynamic, and drop-weight impact machines from STEP Lab, researchers and engineers can correlate loading data with high-resolution imagery frame-by-frame — from quasi-static loading through high-velocity impact.

Recommended for This Application

Photron

FASTCAM Nova S

Photron

FASTCAM Mini AX

Photron

FASTCAM Mini R

Photron

Pharsighted E9 (Distributed by Photron)

Correlated Solutions

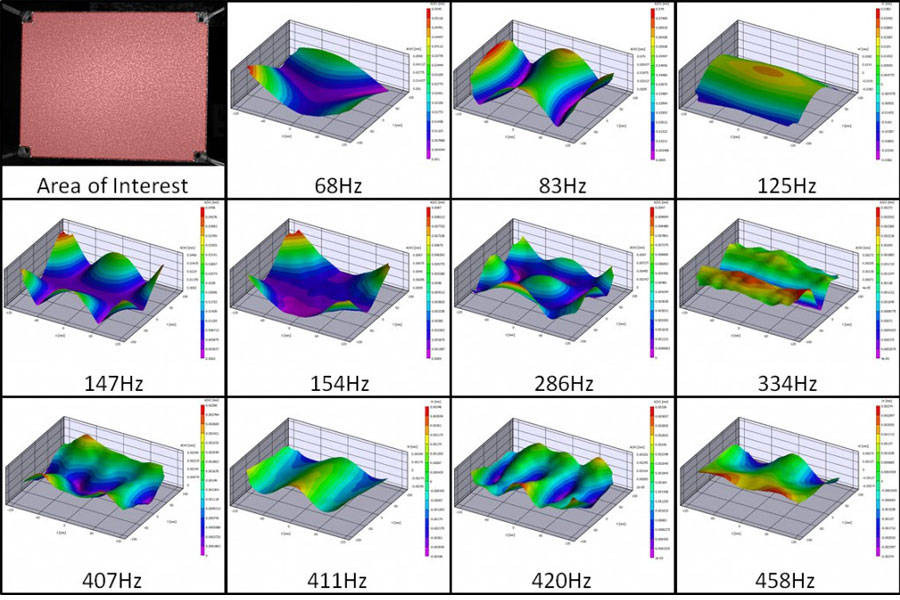

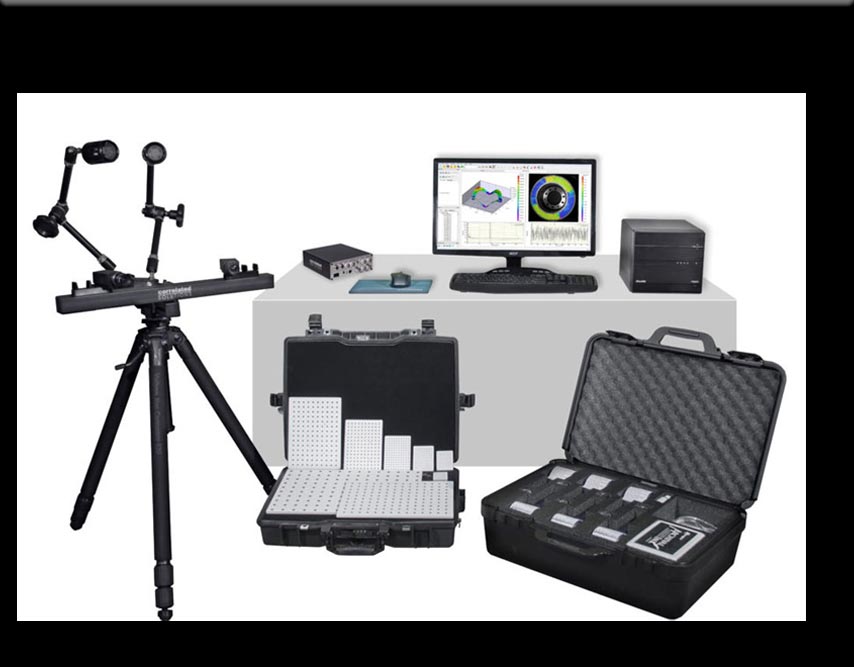

VIC-3D HS

Correlated Solutions

VIC-3D LS

Talk to an Expert

Also Relevant

Photron

High-Speed CamerasUltra High-Speed Cameras

FASTCAM Mini W Series

The Photron FASTCAM Mini W Series delivers 2.4-megapixel resolution, global electronic shutter performance, and exceptional low-light sensitivity in a compact, rugged camera body designed for demanding scientific and industrial environments. FASTCAM Mini W5 – Ultra-High-Speed, High-Sensitivity Imaging 2.4 MP | Up to 5,000 fps (full resolution) | Up to 200,000 fps (reduced resolution) The FASTCAM Mini W5 captures 5,000 fps at full 2048 × 1152 resolution and up to 200,000 fps at reduced resolution. Its large 13-micron pixels provide class-leading light sensitivity for low-light experiments. FASTCAM Mini W2 – High-Sensitivity High-Speed Imaging 2.4 MP | Up to 2,000 fps (full resolution) | Up to 150,000 fps (reduced resolution) The FASTCAM Mini W2 offers the same sensor and image quality as the Mini W5, optimized for applications requiring lower maximum frame rates at excellent sensitivity.

View Details

Photron

High-Speed Cameras

FASTCAM MH6

The FASTCAM MH6 system supports up to six compact HD camera heads (35.4mm x 35mm x 35.4mm, weight 100g), or 12 miniature ST camera heads (15mm x 15mm x 15mm, weight 15g). A combination of HD and ST camera heads may each be connected via a 10m cable to the main processor, facilitating a wide range of camera head viewing angles and mounting positions within the vehicle. All camera heads are extremely rugged and have been operationally tested to 160G. Each MH6 camera head, regardless of type (HD or ST), provides outstanding image quality and industry leading light sensitivity of ISO 5,000 color and 12,500 monochrome. HD camera heads capture images with 1080 full HD resolution at 1,000fps and are compatible with readily available 1-inch C-mount ruggedized lenses. ST camera heads capture images with 800 x 600 (SVGA) resolution at 1,000fps and utilize M10.5 ruggedized lenses.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

Promonscope

A frame rate of up to 3500 frames per second is more than 100 times faster than standard video and allows you to monitor any process in detail. PROMON SCOPE G4 is the tool for detecting trends and catching those sporadic and intermittently occurring incidents in high-speed recording and play it back in slow motion. See your events too fast for the human eye in detail and take corrective actions. Reduce your downtime and waste of material.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

L-VIT Platinum

L-VIT Platinum – A camera with all features! A compact high resolution high speed camera with 1920 x 1080 pixels at up to 2500 fps. For demanding applications in research labs, test ranges and crash sites. L-VIT Platinum is particularly suited for all applications where a compact, portable, high resolution yet robust camera is essential. The highly light-sensitive sensor covers the most ambitious application. Packed with lots of features the L-VIT Platinum leaves no whish open in regards of versatility and use.

View Details

Telops

Infrared / Hyperspectral Imaging

HDR M700

HIGH DYNAMIC RANGE INFRARED CAMERA The HDR M700 represents a revolution in high dynamic range infrared imaging. Traditional midwave infrared cameras can effectively measure a span of about 150 degrees with a single exposure time before experiencing image saturation. Telops HDR M700 utilizes an advanced on-chip saturation management solution to extend the single-exposure time dynamic range to a span of over 900 degrees enabling analysis of scenes and objects exhibiting strong thermal contrast.

View Details

Telops

Infrared / Hyperspectral Imaging

Fast M3K

The Telops FAST M3K is a high-speed mid-wave infrared (MWIR) camera built to capture the fastest thermal events. Its cooled 320 x 256 InSb detector delivers fully radiometric imaging at up to 3,100 frames per second in full-frame mode and over 100,000 fps in subwindow mode across the 1.5–5.4 um MWIR band. With high thermal sensitivity (~25 mK), advanced factory calibration and proprietary automated exposure control (AEC), the FAST M3K produces accurate, high-fidelity temperature data even on the most challenging fast-moving targets — making it ideal for ballistics, combustion, experimental mechanics, materials testing and aerospace research.

View Details

Telops

Infrared / Hyperspectral Imaging

Radia Cams

Designed as an accessible entry point into advanced thermal imaging, the Radia Family maintains the high standards of precision and reliability that Telops is known for, ensuring that users of all levels of expertise can achieve professional-grade results.

View Details

IO Industries

Machine Vision Cameras

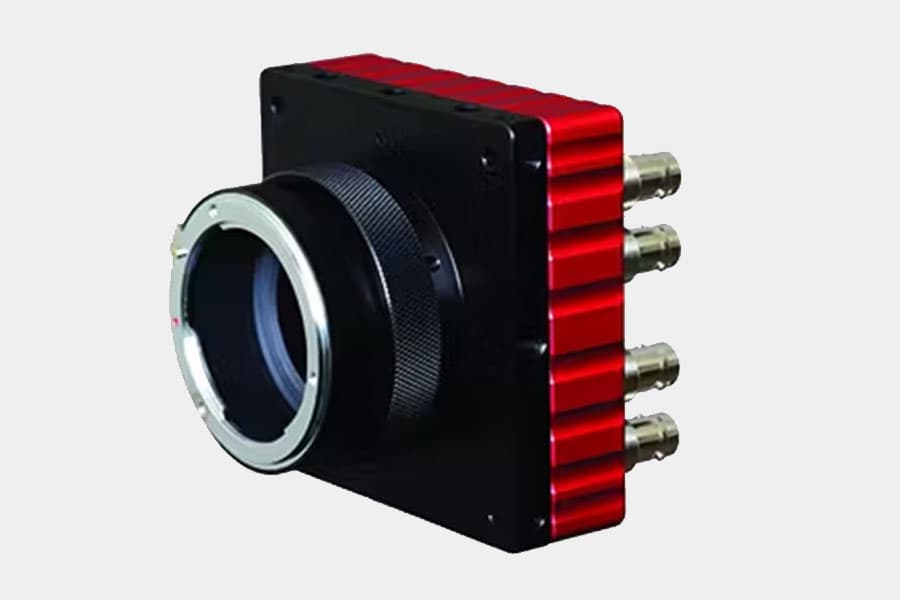

Flare CX

The Flare™ series is a family of high-throughput video cameras featuring high-resolution and high frame rate image sensors and a reliable CoaXPress industrial video interface. Available CMOS image sensors include the CMV12000 12.6MP sensor and the CMV50000 47.5MP sensor. All sensors use global shutter technology, with high-sensitivity and low-noise pixel designs. Monochrome and color models are available to suit a variety of applications in industrial and scientific imaging, high speed motion analysis, wide area observation, as well as virtual reality and special effects.

View Details

GS Vitec

Lighting & Laser Illumination

MultiLed MX

Exchangeable lenses 60.000 lm white, color or NiR LED Pulsed or continuous Small size Down to 200 ns strobe

View Details

Xcitex

Analysis & Control Software

ProAnalyst

Calibrate scenes, process videos, track motion, and graph motion data with the award-winning ProAnalyst software. Track motion, instead of markers ProAnalyst 2023 is the newest, most powerful version of ProAnalyst yet, with 20+ analysis toolkits available. ProAnalyst 2023 gives you the tools you need to tackle any motion analysis application. Stabilize, calibrate, and process images to prepare for analysis Track features to measure motion quantities in 2-D and in 3‑D Compute angle and distance measurements from tracked features Graph motion data inside ProAnalyst and export to a variety of formats

View Details

PCO Excelitas

Scientific Cameras

sCMOS

PCO scientific cameras utilize advanced scientific CMOS (sCMOS) sensor technology, providing a powerful combination of high resolution, fast frame rates, and extremely low read noise. These cameras are widely used in scientific research laboratories, industrial inspection systems, and advanced imaging setups where accuracy and repeatability are essential. The Excelitas PCO portfolio spans a broad performance range including: • Sensor resolutions from 2 MP to over 10 MP • Frame rates from approximately 40 fps to over 100 fps • Quantum efficiency approaching 95% • Dynamic range greater than 15,000:1 • Extremely low read noise, including sub-electron levels in cooled models • Excellent linearity and signal stability These capabilities enable precise imaging in both low-light environments and high-speed experimental setups, making PCO cameras a strong solution for many demanding imaging applications.

View Details

Need a solution for Materials & Mechanical Testing?

Our team matches your application to the exact camera, lens, and software stack it needs.
